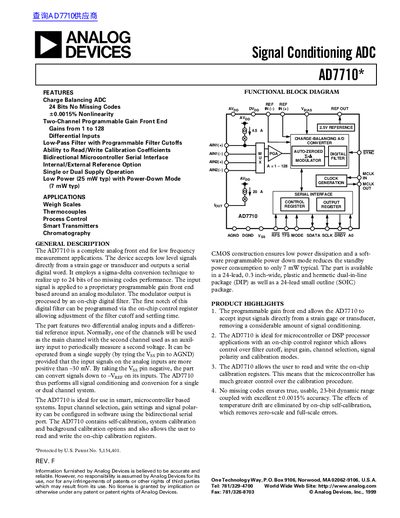

Analog Devices AD7710 Signal Conditioning ADC Datasheet
The AD7710 is a complete analog front-end designed for low-frequency measurement applications. It accepts low-level signals directly from strain gauges or transducers and outputs a serial digital word using a sigma-delta conversion technique to achieve up to 24 bits of no missing codes performance.
The device features two differential analog inputs, a programmable gain front end with gains from 1 to 128, and an internal low-pass filter with programmable cutoffs. It includes self-calibration options and allows users to read/write on-chip calibration coefficients via a bidirectional microcontroller serial interface.
Analog Devices AD7710 specifications
| Resolution (No Missing Codes) | 24 Bits min |
|---|---|
| Integral Nonlinearity | +0.0015 % of FSR max |
| Gain Range | 1 to 128 |
| Power Consumption (Typ) | 25 mW |
| Package Type | 24-lead DIP or SOIC |
| Input Common-Mode Rejection | 100 dB min |
Source: Analog Devices AD7710 Signal Conditioning ADC Datasheet
All Analog Devices AD7710 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum gain of the AD7710?
The programmable gain front end allows gains from 1 to 128.
From: Analog Devices AD7710 Signal Conditioning ADC Datasheet
Does the AD7710 support bipolar input ranges?
Yes, by taking the Vss pin negative, the part can convert signals down to -Vref on its inputs.
From: Analog Devices AD7710 Signal Conditioning ADC Datasheet
What is the resolution of the AD7710?
The AD7710 provides 24‑bit resolution with no missing codes.
How much power does the AD7710 consume in normal operation?
Typical power consumption in normal mode is 25 mW, dropping to about 7 mW in standby.
What is the resolution of the AD7710?
The AD7710 provides 24‑bit resolution with no missing codes.
What is the typical power consumption in normal mode?
Typical power consumption is 25 mW in normal mode.
