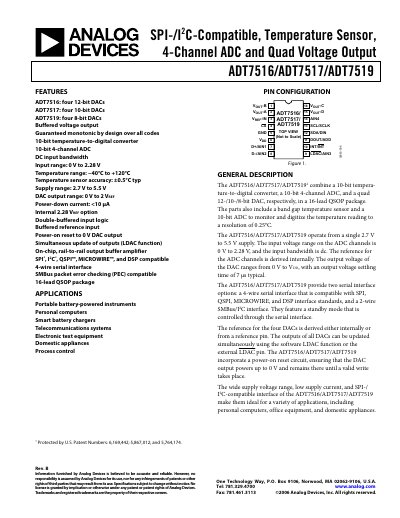

Analog Devices ADT7516/ADT7517/ADT7519 Datasheet Rev B
The ADT7516/ADT7517/ADT7519 family combines a temperature sensor, a 10‑bit 4‑channel ADC and a quad DAC (12‑bit, 10‑bit or 8‑bit depending on the part) in a 16‑lead QSOP package. The devices operate from a single 2.7 V to 5.5 V supply and support SPI, I2C, QSPI, MICROWIRE, DSP‑compatible and SMBus interfaces.
Key features include buffered voltage outputs, monotonic DAC operation, low power‑down current (<10 µA), and programmable over‑/under‑limit interrupt pins. The data sheet provides detailed specifications, pin descriptions, timing diagrams, and absolute maximum ratings for design engineers.
Analog Devices ADT7519 specifications
| Operating temperature range | −40 °C to +120 °C |
|---|---|
| Supply voltage range | 2.7 V to 5.5 V |
| DAC resolution (ADT7519) | 8 bits |
| ADC resolution | 10 bits (4‑channel) |
| Power‑down current | <10 µA |
Source: Analog Devices ADT7516/ADT7517/ADT7519 Datasheet Rev B
All Analog Devices ADT7519 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range of the ADT7516/ADT7517/ADT7519?
The devices operate from –40 °C to +120 °C.
From: Analog Devices ADT7516/ADT7517/ADT7519 Datasheet Rev B
What supply voltage does the device require?
It works with a supply voltage between 2.7 V and 5.5 V.
From: Analog Devices ADT7516/ADT7517/ADT7519 Datasheet Rev B
What serial interfaces does the ADT7516/7517/7519 support?
They support a 4‑wire SPI‑compatible interface (including QSPI, MICROWIRE, and DSP) and a 2‑wire SMBus/I²C interface.
What is the DAC output voltage range?
The DAC output can swing from 0 V to 2 V.
