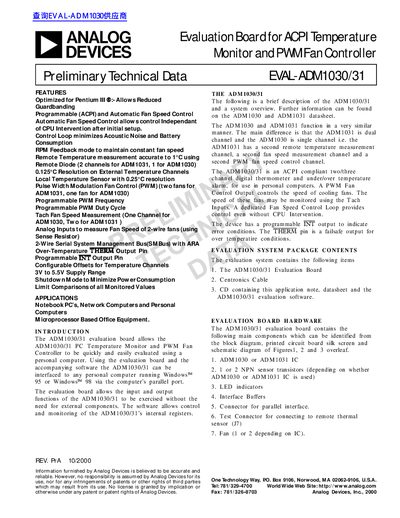

Analog Devices EVAL-ADM1030/31 Evaluation Board Preliminary Technical Data
This document serves as a preliminary technical data sheet for the Analog Devices EVAL-ADM1030/31 Evaluation Board. It is designed to allow users to quickly evaluate the ADM1030 or ADM1031 PC Temperature Monitor and PWM Fan Controller chips using a personal computer running Windows 95 or Windows 98 via the parallel port.
Read onlineAnalog Devices ADM1030 specifications
| Supply Voltage | 3.0 V to 5.5 V |
|---|---|
| Internal Sensor Accuracy | +1°C to +3°C |
| Remote Sensor Accuracy | +1°C |
| Package Type | 16-Lead QSOP |
| Operating Temperature Range | 0°C to 100°C |
Source: Analog Devices ADM1030 Intelligent Temperature Monitor and PWM Fan Controller Datasheet
All Analog Devices ADM1030 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the operating supply voltage range for the ADM1030?
The device operates with a supply voltage range of 3.0 V to 5.5 V.
From: Analog Devices ADM1030 Intelligent Temperature Monitor and PWM Fan Controller Datasheet
What is the accuracy of the internal temperature sensor?
The internal sensor has an accuracy of +1°C to +3°C.
From: Analog Devices ADM1030 Intelligent Temperature Monitor and PWM Fan Controller Datasheet
Which operating systems are supported by this evaluation board?
The evaluation board allows interfacing to any personal computer running Windows 95 or Windows 98 via the computer's parallel port.
From: Analog Devices EVAL-ADM1030/31 Evaluation Board Preliminary Technical Data
What power supply is required for the evaluation board?
Power is supplied to the board via J6 using a 15V Power Supply mains adaptor, which is not included in the kit.
From: Analog Devices EVAL-ADM1030/31 Evaluation Board Preliminary Technical Data
