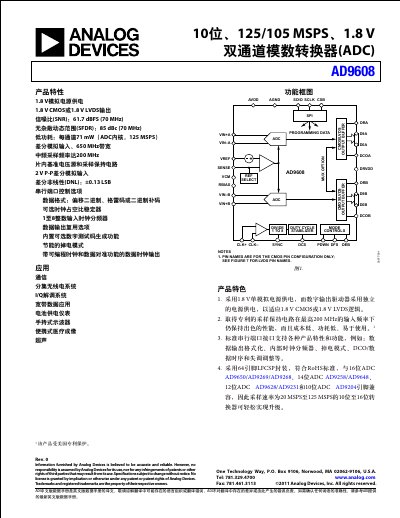

Analog Devices AD9608 Dual‑Channel 10‑Bit 125/105 MSPS ADC Datasheet

The AD9608 is a single‑chip, dual‑channel, 10‑bit ADC that operates at 105 MSPS or 125 MSPS with a 1.8 V supply. It features an on‑chip sample‑and‑hold circuit, internal reference, programmable clock and data alignment, and optional digital test‑code generation. The device supports both 1.8 V CMOS and 1.8 V LVDS output logic levels and offers flexible data formats (offset binary, Gray code, two's complement).

The datasheet provides detailed specifications, pin configurations, timing diagrams, power‑mode settings, and design guidelines for PCB layout, power distribution, and ESD protection. It also includes application information for communications, broadband data, handheld oscilloscopes, and portable medical imaging. This manual is written in Chinese.
