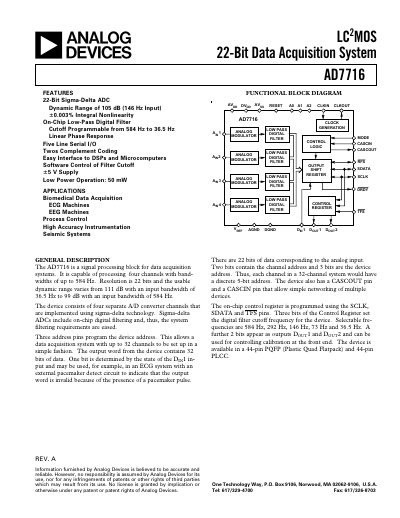

Analog Devices AD7716 Datasheet
The AD7716 is a 4‑channel 22‑bit A/D converter designed for low‑frequency, high‑dynamic‑range measurements such as ECG, EEG, and other biomedical or process‑control signals. It features on‑chip digital filtering with selectable cutoff frequencies of 584 Hz down to 36.5 Hz and provides a usable dynamic range up to 105 dB.
The device is supplied in 44‑pin PQFP or PLCC packages, operates from ±5 V supplies, and includes a serial interface with pins for address, cascade, and data control. Typical applications include biomedical data acquisition, high‑accuracy instrumentation, and seismic systems.
Analog Devices AD7716 specifications
| Resolution | 22 Bits |
|---|---|
| Dynamic Range | 105 dB (146 Hz input) |
| Filter Cutoff Frequencies | 584 Hz, 292 Hz, 146 Hz, 73 Hz, 36.5 Hz |
| Analog Input Range | ±2.5 V |
| Power Consumption | 50 mW max |
| Supply Voltage (AVDD) | +5 V nominal |
| Package Options | 44‑pin PQFP, 44‑pin PLCC |
Source: Analog Devices AD7716 Datasheet
All Analog Devices AD7716 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How many input channels does the AD7716 have?
The AD7716 provides four independent A/D converter channels.
What is the maximum sampling rate of the AD7716?
With a master clock of 8 MHz, the AD7716 samples at 570 kHz (fCLKIN/14).
How many address pins does the AD7716 have?
It has three address pins (A0, A1, A2) that allow up to 32 devices to be addressed in a system.
What is the power consumption of the AD7716?
Typical power consumption is 35 mW, with a maximum of 50 mW.
