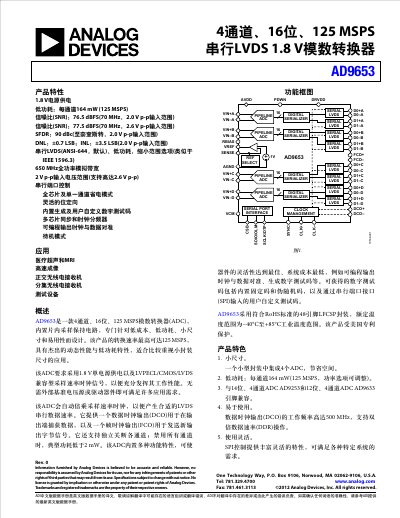

Analog Devices AD9653 16-Bit 125 MSPS Serial LVDS ADC Datasheet
Datasheet 40 pages · 1.2 MB · ZH
The AD9653 is a high-speed ADC designed for low-cost, low-power, and small-size applications. It features four channels, each capable of sampling at up to 125 MSPS, and includes an internal sample-and-hold circuit. The device operates with a single 1.8 V supply and supports Serial LVDS output. This manual is written in Chinese.
Read onlineAnalog Devices AD9653 specifications
| Resolution | 16 bit |
|---|---|
| Sampling Rate | 125 MSPS |
| Channels | 4 channel |
| Supply Voltage (AVDD) | 1.8 V |
| Signal-to-Noise Ratio (SNR) | 76.5 dBFS @ 70 MHz |
| Spurious-Free Dynamic Range (SFDR) | 90 dBc |
| Differential Nonlinearity (DNL) | ±0.7 LSB |
| Integral Nonlinearity (INL) | ±3.5 LSB |
Source: Analog Devices AD9653 16-Bit 125 MSPS Serial LVDS ADC Datasheet
All Analog Devices AD9653 documents by type
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
Other documents 1
Questions answered in these manuals
What is the operating temperature range of the AD9653?
The device is rated for an industrial temperature range from −40°C to +85°C.
From: Analog Devices AD9653 16-Bit 125 MSPS Serial LVDS ADC Datasheet
Does the AD9653 include a sample-and-hold circuit?
Yes, it features built-in on-chip sample-and-hold circuitry.
From: Analog Devices AD9653 16-Bit 125 MSPS Serial LVDS ADC Datasheet
