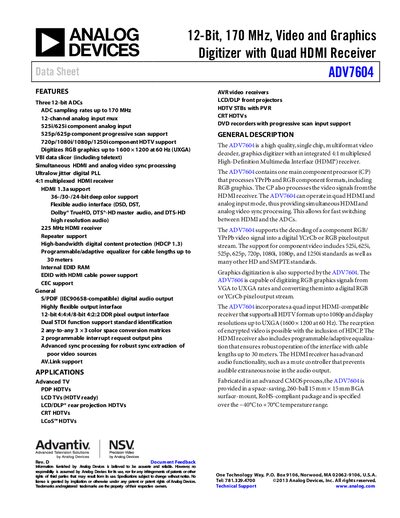

Analog Devices ADV7604 Video and Graphics Digitizer Data Sheet
The ADV7604 is a high-quality, single-chip multiformat video decoder and graphics digitizer featuring an integrated 4:1 multiplexed HDMI receiver. It processes YPrPb and RGB component formats as well as RGB graphics, supporting resolutions up to UXGA (1600 × 1200 at 60 Hz). The device incorporates three 12-bit ADCs with sampling rates up to 170 MHz and supports various analog input standards including 525i/625i component and HDTV formats like 720p, 1080i, and 1080p.
Read onlineAnalog Devices ADV7604 specifications
| ADC Resolution | 12-bit |
|---|---|
| Maximum Sampling Rate | 170 MHz |
| Operating Temperature Range | -40°C to +70°C |
| Package Type | 260-ball BGA |
Source: Analog Devices ADV7604 Video and Graphics Digitizer Data Sheet
All Analog Devices ADV7604 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum sampling rate of the ADCs?
The ADC sampling rates are up to 170 MHz.
From: Analog Devices ADV7604 Video and Graphics Digitizer Data Sheet
Does the ADV7604 support HDCP?
Yes, it supports High-bandwidth digital content protection (HDCP 1.3).
From: Analog Devices ADV7604 Video and Graphics Digitizer Data Sheet
What is the operating temperature range of the ADV7604?
The device operates from –40 °C to +70 °C.
What is the HDMI receiver bandwidth?
The HDMI receiver operates at 225 MHz.
