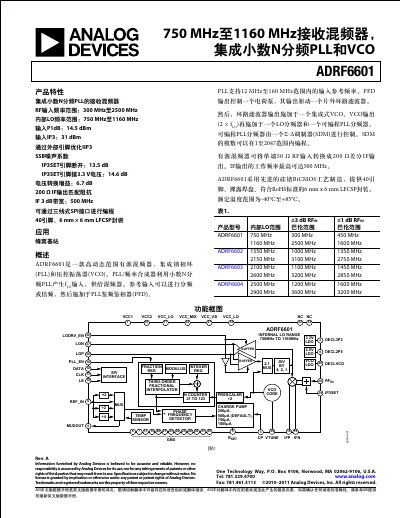

Analog Devices ADRF6601 Receiver Mixer Datasheet
The ADRF6601 is a high dynamic range active receiver mixer that integrates a fractional-N phase-locked loop (PLL) and a voltage-controlled oscillator (VCO). It converts single-ended 50 Ω RF inputs into differential 200 Ω intermediate frequency (IF) outputs with frequencies up to 500 MHz. The device features an internal LO ranging from 750 MHz to 1160 MHz and supports programmable charge pump currents via a three-wire SPI interface.
Manufactured using advanced silicon-germanium BiCMOS technology, the ADRF6601 is available in a 40-pin, exposed pad leadframe chip scale package (LFCSP) measuring 6 mm x 6 mm. It operates over an industrial temperature range of -40°C to +85°C and includes features such as programmable IP3 optimization and low noise figure options. This manual is written in Chinese.
Analog Devices ADRF6601 specifications
| Internal LO frequency range | 750 MHz – 1160 MHz |
|---|---|
| RF input frequency range | 300 MHz – 2500 MHz |
| Input P1dB | 14.8 dBm |
| IF 3‑dB bandwidth | 500 MHz |
All Analog Devices ADRF6601 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the internal LO frequency range of the ADRF6601?
The internal LO operates from 750 MHz to 1160 MHz.
What RF frequencies can the ADRF6601 accept?
It accepts RF inputs from 300 MHz up to 2500 MHz.
