Key facts
- Brand
- Analog Devices
- Model
- AD723
- Category
- Other Electronics
- Documents
- 3
- Languages
- EN
- Last added
- 2012-05-09
Start here

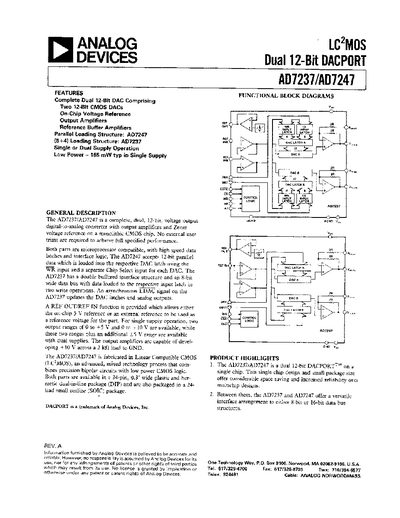

Analog Devices AD7237/AD7247 Datasheet
The AD7237 and AD7247 are dual 12‑bit voltage‑output digital‑to‑analog converters that integrate on‑chip voltage reference, output amplifiers, and a parallel loading structure. They support both single‑supply (+15 V) and dual‑supply (±15 V) operation and offer selectable output ranges of 0‑5 V, 0‑10 V, and ±5 V.
Both devices are available in 24‑pin DIP and SOIC packages. The document includes full pin‑function tables, timing diagrams, electrical specifications, and example microprocessor interfacing circuits for processors such as the ADSP‑2101, 8086, and 68000.
Analog Devices AD723 specifications
| Operating Voltage Range | 2.7 V to 5.5 V (single supply) |
|---|---|
| Package | 28‑lead TSSOP |
| Current Consumption (no load) | 16 mA (composite), 19 mA (S‑Video) |
| Luminance Bandwidth (NTSC) | 4.7 MHz (‑3 dB) |
| Chrominance Burst Amplitude (NTSC) | 185 mV‑315 mV p‑p |
| Maximum Output Load | 75 Ω (active termination) |
| Operating Temperature Range | –40 °C to +85 °C |
Source: Analog Devices AD723 Datasheet
All Analog Devices AD723 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the resolution of the AD7237/AD7247?
Both devices provide a 12‑bit resolution.
What supply voltage does the device require?
The converters can be powered from a single +15 V supply or from dual ±15 V supplies.
What supply voltage range does the AD723 support?
The AD723 operates from a single supply voltage of 2.7 V to 5.5 V.
How does the AD723 indicate that no TV is present?
The TVDET output pin goes low, signalling that no TV is detected.
What supply voltage range does the AD7237A/AD7247A support?
It operates from +12 V to +15 V for single‑supply operation and from ±12 V to ±15 V for dual‑supply operation.
From: Analog Devices AD7237A/AD7247A Dual 12‑Bit DACPORT Datasheet
How many bits of resolution does the DAC provide?
The device provides 12‑bit resolution.
From: Analog Devices AD7237A/AD7247A Dual 12‑Bit DACPORT Datasheet
