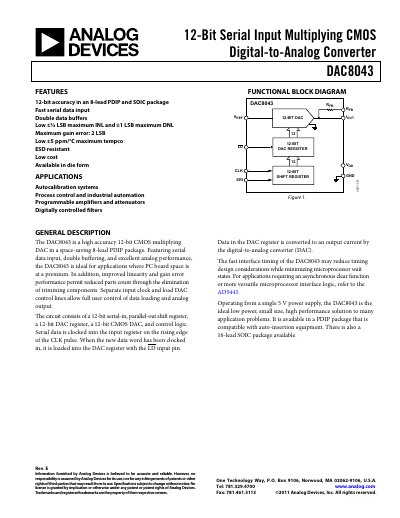

Analog Devices DAC8043 12-Bit Serial Input Multiplying CMOS Digital-to-Analog Converter Data Sheet
The DAC8043 is a high accuracy 12-bit CMOS multiplying DAC designed for applications where PC board space is a premium. It features a serial data input, double buffering, and excellent analog performance. The device includes a 12-bit serial-in, parallel-out shift register, a 12-bit DAC register, and a 12-bit CMOS DAC, allowing for full user control of data loading and analog output via separate input clock and load DAC control lines.
Read onlineAnalog Devices DAC8043 specifications
| Resolution | 12 Bits |
|---|---|
| Integral Nonlinearity (INL) | ±½ LSB |
| Differential Nonlinearity (DNL) | ±1 LSB |
| Gain Error (TA = 25°C) | 2 LSB |
| Gain Tempco | ±5 ppm/°C |
| Supply Voltage | 4.75 V to 5.25 V |
| Operating Temperature (FP Version) | -40°C to +85°C |
| Output Leakage Current (TA = 25°C) | ±5 nA |
| Output Current Settling Time | 0.25 μs |
| Package Types | 8-lead PDIP and 16-lead SOIC |
Source: Analog Devices DAC8043 12-Bit Serial Input Multiplying CMOS Digital-to-Analog Converter Data Sheet
All Analog Devices DAC8043 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the resolution of the DAC8043?
The DAC8043 has a resolution of 12 bits.
From: Analog Devices DAC8043 12-Bit Serial Input Multiplying CMOS Digital-to-Analog Converter Data Sheet
What are the available package types for the DAC8043?
The device is available in an 8-lead PDIP and a 16-lead SOIC package.
From: Analog Devices DAC8043 12-Bit Serial Input Multiplying CMOS Digital-to-Analog Converter Data Sheet
What is the resolution of the DAC8043?
The DAC8040 provides a 12‑bit resolution.
What supply voltage range does the DAC8043 require?
It operates from 4.75 V to 5.25 V supply voltage.
What is the operating temperature range?
The DAC8043A operates from –40 °C to +85 °C.
From: Analog Devices DAC8043A 12-Bit Serial Input Multiplying D/A Converter Datasheet
Which pin provides the reference voltage input?
Pin 1 (7) – V REF is the DAC reference input pin.
From: Analog Devices DAC8043A 12-Bit Serial Input Multiplying D/A Converter Datasheet
