Start here

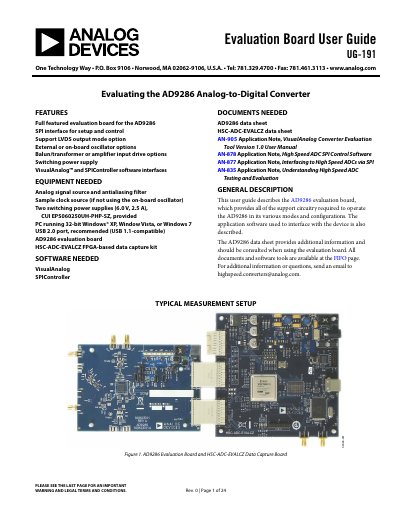

ANALOG DEVICES UG-191 handbook
This document provides instructions for the AD9286 evaluation board, which includes all necessary support circuitry to operate the device in various modes. It details the equipment and software required, such as the VisualAnalog and SPIController interfaces, and describes the typical measurement setup involving signal sources and data capture kits.
The guide covers hardware configuration, including power supply connections, analog input settings, and clock circuitry options. It explains how to configure jumpers for different analog input modes, enabling separate clocking, or non-SPI operation, and provides a quick start procedure for using the accompanying software.
Analog Devices AD9286 specifications
| Analog Input Frequency | up to ~200 MHz |
|---|---|
| Reference Voltage | 1.0 V |
| RBIAS Default Setting | 10 kΩ |
| Power Supply Output | 6 V, 2 A |
Source: ANALOG DEVICES UG-191 handbook
All Analog Devices AD9286 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What software is needed to interface with the AD9286 evaluation board?
The required software includes VisualAnalog and SPIController.
How do I enable separate clocking for each internal ADC core?
Write a value 0 to SPI Address 0x09 and place a jumper across J204 to tie AUXCLKEN to DRVDD.
What supply voltage does the AD9286 require?
The AD9286 operates from a single 1.8 V supply (AVDD and DRVDD).
What is the maximum sampling rate of the AD9286?
It can sample up to 500 MSPS using on‑chip interleaved operation.
