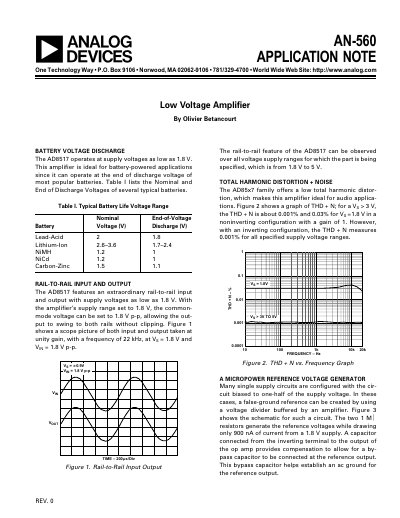

Analog Devices AN-560 AD8517 Application Note
The document provides an overview of the AD8517 operational amplifier, highlighting its ability to operate at supply voltages as low as 1.8 V. It details features such as rail-to-rail input and output capabilities and low total harmonic distortion plus noise suitable for audio applications.
The note includes several practical circuit examples demonstrating the use of the AD8517 in various configurations, including a micropower reference voltage generator, a microphone preamplifier, and a direct access arrangement for telephone line interfaces.
Analog Devices AD8517 specifications
| Supply Voltage Range | 1.8 V to 6 V |
|---|---|
| Input Bias Current | 450 nA |
| Gain Bandwidth Product | 7 MHz |
Source: Analog Devices AD8517/AD8527 Operational Amplifier Datasheet
