Start here

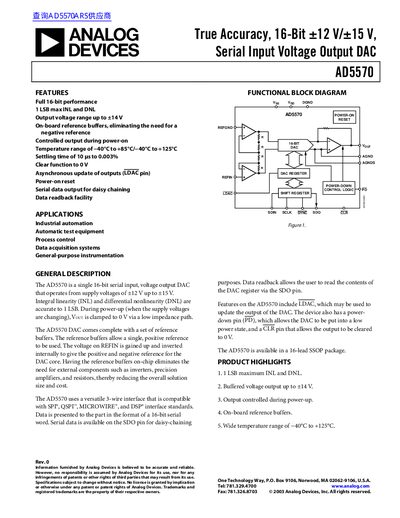

Analog Devices AD5570 16-Bit Serial Input Voltage Output DAC Datasheet
The AD5570 is a single 16-bit serial input, voltage output Digital-to-Analog Converter (DAC) designed for industrial automation, automatic test equipment, process control, and data acquisition systems. It operates from supply voltages of ±12 V up to ±15 V and features full 16-bit performance with integral linearity (INL) and differential nonlinearity (DNL) accurate to 1 LSB.
Read onlineAnalog Devices AD557 specifications
| Resolution | 16 Bits |
|---|---|
| Differential Nonlinearity (DNL) | −1 to +1 LSB |
| Output Voltage Range | ±14 V |
| Supply Voltage Range | ±12 V to ±15 V |
| Operating Temperature Range (W, Y Grades) | -40°C to +125°C |
Source: Analog Devices AD5570 16-Bit Serial Input Voltage Output DAC Datasheet
All Analog Devices AD557 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output voltage range of the AD5570?
The device features an output voltage range up to ±14 V.
From: Analog Devices AD5570 16-Bit Serial Input Voltage Output DAC Datasheet
Is the AD5570 compatible with standard SPI interfaces?
Yes, it uses a versatile 3-wire interface compatible with SPI®, QSPI™, MICROWIRE™, and DSP® standards.
From: Analog Devices AD5570 16-Bit Serial Input Voltage Output DAC Datasheet
What is the unipolar output voltage range of the AD557?
The AD557 provides a 0 V to 2.56 V output range in unipolar mode.
How many bits of resolution does the AD557 have?
The AD557 has an 8‑bit resolution.
What supply voltage range does the AD5570 require?
The AD5570 operates from ±11.4 V to ±16.5 V supplies.
From: Analog Devices AD5570 Digital-to-Analog Converter Datasheet
How can the output be cleared to 0 V?
By asserting the active‑low CLR pin, which resets VOUT to AGND.
From: Analog Devices AD5570 Digital-to-Analog Converter Datasheet
