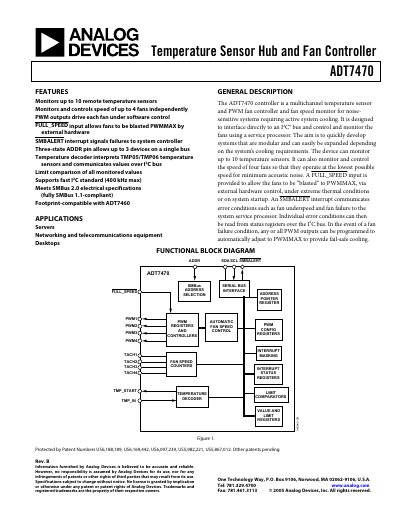

Analog Devices ADT7470 Temperature Sensor Hub and Fan Controller Manual
The ADT7470 is a multichannel temperature‑sensor hub and PWM fan controller designed for noise‑sensitive systems that require active cooling. It monitors up to ten remote temperature sensors and independently controls the speed of up to four fans via an I²C/SMBus interface.
The manual provides full specifications, absolute maximum ratings, pin descriptions, functional block diagrams, register maps, SMBus communication protocols, fan‑speed measurement methods, interrupt handling, and configuration options such as automatic fan control and temperature‑based fan curves.
Analog Devices ADT7470 specifications
| Supply Voltage Range | 3.0 V to 5.5 V |
|---|---|
| Operating Temperature Range | -40°C to +125°C |
| Max Clock Frequency | 400 kHz |
| Number of Fan Channels | 4 |
| Max Remote Temperature Sensors | 10 |
| Package Type | 16-Lead QSOP |
Source: Analog Devices ADT7470 Temperature Sensor Hub and Fan Controller Data Sheet
