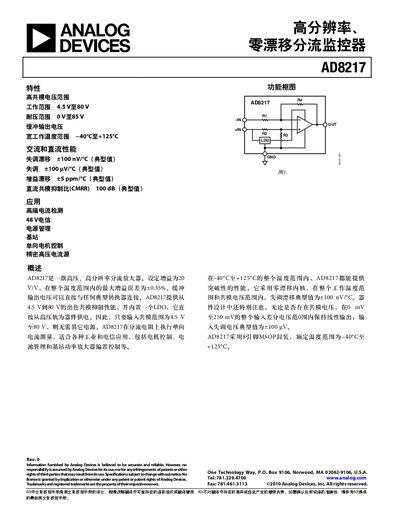

Analog Devices AD8217 High-Resolution Zero-Drift Shunt Monitor Datasheet
The AD8217 is a high-voltage, high-resolution shunt monitor designed for industrial and telecommunications applications such as motor control, battery management, and base station power amplifier bias control. It features a high common-mode voltage range from 4.5 V to 80 V and includes an internal LDO that allows the device to be powered directly from the high-voltage rail, eliminating the need for an external supply. This manual is written in Chinese.
Read onlineAnalog Devices AD8217 specifications
| Gain | 20 V/V |
|---|---|
| Common-Mode Voltage Range | 4.5 V to 80 V |
| Operating Temperature Range | -40°C to +125°C |
| Offset Drift | ±100 nV/°C (typical) |
| DC Common-Mode Rejection Ratio (CMRR) | 100 dB (typical) |
| Package | 8-lead MSOP |
Source: Analog Devices AD8217 High-Resolution Zero-Drift Shunt Monitor Datasheet
All Analog Devices AD8217 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical gain error over the temperature range?
The maximum gain error over the entire temperature range is ±0.35%.
From: Analog Devices AD8217 High-Resolution Zero-Drift Shunt Monitor Datasheet
What is the operating voltage range for the AD8217?
The device operates with a voltage range of 4.5 V to 80 V.
From: Analog Devices AD8217 High-Resolution Zero-Drift Shunt Monitor Datasheet
What is the gain of the AD8217?
The AD8217 has a fixed gain of 20 V/V.
What is the allowable common‑mode input voltage range?
The device accepts common‑mode voltages from 4.5 V up to 80 V.
