Start here

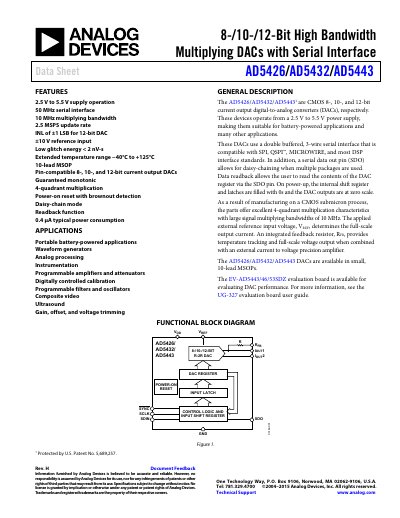

Analog Devices AD5426/AD5432/AD5443 Datasheet
The AD5426, AD5432, and AD5443 are 8‑, 10‑, and 12‑bit current‑output digital‑to‑analog converters that operate from a 2.5 V to 5.5 V supply and feature a 50 MHz serial interface, 10 MHz multiplying bandwidth, and a 2.5 MSPS update rate. They offer guaranteed monotonicity, 4‑quadrant multiplication, and low‑glitch performance, making them suitable for portable, battery‑powered, and instrumentation applications.
The datasheet includes pin‑out diagrams, absolute maximum ratings, timing characteristics, PCB layout recommendations, and an ordering guide. It also describes single‑supply operation, gain‑setting options, daisy‑chain and read‑back modes, and provides typical performance graphs such as INL/DNL, gain error versus temperature, and supply current versus input voltage.
Analog Devices AD542 specifications
| Resolution | 8 bits (AD5426), 10 bits (AD5432), 12 bits (AD5443) |
|---|---|
| Supply Voltage Range | 2.5 V to 5.5 V |
| Update Rate | 2.5 MSPS |
| Multiplying Bandwidth | 10 MHz |
| Serial Interface Clock Max | 50 MHz |
| Typical Power Consumption | 0.4 µA |
| Gain Error | ±10 mV |
| Output Leakage Current | ±10 nA |
| Operating Temperature Range | −40 °C to +125 °C |
All Analog Devices AD542 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Analog Devices AD5426/AD5432/AD5443 Datasheet 24 p
- Analog Devices AD5428/AD5440/AD5447 Digital-to-Analog Converter Datasheet 32 p
- Analog Devices AD5426/AD5432/AD5443 Datasheet 24 p
- Analog Devices AD542/AD544/AD547 Operational Amplifier Handbook 12 p
- Analog Devices AD5424/AD5433/AD5445 Datasheet 28 p
- Analog Devices AD5426/AD5432/AD5443 Datasheet Rev D 24 p
- Analog Devices AD5425 Datasheet 28 p
- Analog Devices AD5429/AD5439/AD5449 Datasheet 28 p
- Analog Devices AD5428/AD5440/AD5447 Datasheet Handbook Rev C 32 p
- Analog Devices AD5424/AD5433/AD5445 Multiplying DAC Datasheet 24 p
- Analog Devices AD5410/AD5420 Datasheet 28 p
- Analog Devices AD5421 16‑Bit DAC Data Sheet 36 p
- Analog Devices AD5424/AD5433/AD5445 Handbook 24 p
- Analog Devices AD5410/AD5420 Current Output DAC Datasheet 28 p
- Analog Devices AD5426/AD5432/AD5443 Handbook 28 p
- Analog Devices AD5422 Datasheet 37 p
- Analog Devices AD5410/AD5420 Dual‑Channel DAC Datasheet 28 p
- Analog Devices AD5410/AD5420 Datasheet 28 p
How to use the product for one specific task, with worked examples.
- ANALOG DEVICES UG-442: Evaluating the AD5422 Single Channel 16-Bit Current Source Voltage Output DAC HART Connectivity Manual
- ANALOG DEVICES UG-441: Evaluating the AD5420 Single-Channel 16-Bit Serial Input Current Source DAC Manual
- ANALOG DEVICES AD5412/AD5422 English products handbook Rev D
- ANALOG DEVICES AD5421 handbook
Questions answered in these manuals
What supply voltage range does the AD5426/AD5432/AD5443 support?
The devices operate from a 2.5 V to 5.5 V supply.
What is the maximum serial clock frequency for these DACs?
The serial interface can run up to 50 MHz.
What supply voltage range do the AD5428/AD5440/AD5447 support?
All three devices operate from a single supply voltage of 2.5 V to 5.5 V.
From: Analog Devices AD5428/AD5440/AD5447 Digital-to-Analog Converter Datasheet
What is the maximum update rate of these DACs?
The devices can update at up to 21.3 MSPS.
From: Analog Devices AD5428/AD5440/AD5447 Digital-to-Analog Converter Datasheet
What is the glitch energy of these DACs?
The devices feature low glitch energy, typically less than 2 nV-s.
Are these DACs guaranteed to be monotonic?
Yes, the AD5426/AD5432/AD5443 are guaranteed to be monotonic.
