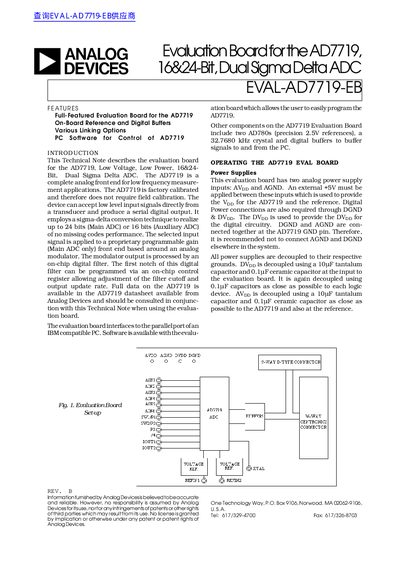

ANALOG DEVICES EVAL-AD7719-EB Evaluation Board for the AD7719 16 24-Bit Dual Sigma Delta ADC handbook
The document provides a technical overview of the EVAL-AD7719-EB, an evaluation board designed for the AD7719 dual sigma-delta ADC. It details the board's features, including on-board references and digital buffers, and explains how to interface it with a PC via parallel port connectors.
Read onlineAnalog Devices AD7719 specifications
| Main ADC Resolution | 24‑bit |
|---|---|
| Auxiliary ADC Resolution | 16‑bit |
| Supply Voltage | 3 V or 5 V |
| Normal Mode Power Consumption | 1.5 mA typ @ 3 V |
| Power‑Down Current | 10 µA max |
Source: ANALOG DEVICES AD7719 Low Voltage Low Power Factory-Calibrated 16-/24-Bit Dual Manual
All Analog Devices AD7719 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the primary function of this evaluation board?
The board serves as an evaluation platform for the AD7719, which acts as a complete analog front end for low frequency measurement applications.
What power supply voltage is required to operate this board?
An external +5V must be applied between the AVDD and AGND inputs.
How many independent ADC channels does the AD7719 have?
It has two independent ADCs (16‑ and 24‑bit).
From: ANALOG DEVICES AD7719 Low Voltage Low Power Factory-Calibrated 16-/24-Bit Dual Manual
What supply voltages does the AD7719 support?
The device operates from a single 3 V or 5 V supply.
From: ANALOG DEVICES AD7719 Low Voltage Low Power Factory-Calibrated 16-/24-Bit Dual Manual
