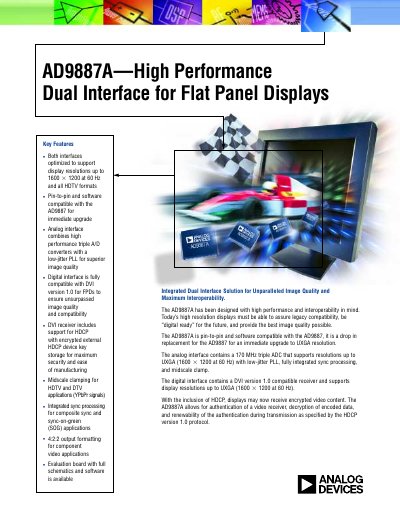

Analog Devices AD9887A High Performance Dual Interface Datasheet
The AD9887A is an integrated dual interface solution designed for flat panel displays (FPDs) that supports both analog and digital video interfaces. It features a high-performance triple A/D converter with a low-jitter PLL for the analog input, capable of handling resolutions up to UXGA (1600 x 1200 at 60 Hz). The device is pin-to-pin and software compatible with the AD9887, allowing for an immediate upgrade.
Read onlineAnalog Devices AD9887 specifications
| Maximum Display Resolution | 1600 x 1200 at 60 Hz |
|---|---|
| Analog Interface Conversion Rate | 170 MSPS |
| Digital Interface Operation Frequency | 170 MHz |
| Power Supply Voltage | 3.3 V |
| Digital Input Tolerance | 5.0 V tolerant |
| Package Type | 160-lead MOQFP |
Source: Analog Devices AD9887A High Performance Dual Interface Datasheet
All Analog Devices AD9887 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
Is the AD9887A compatible with previous models?
Yes, it is pin-to-pin and software compatible with the AD9887.
From: Analog Devices AD9887A High Performance Dual Interface Datasheet
Does the device support HDCP?
Yes, the DVI receiver includes support for HDCP version 1.0.
From: Analog Devices AD9887A High Performance Dual Interface Datasheet
What is the maximum operating frequency for the AD9887A analog interface?
The AD9887A analog interface is designed to operate up to 170 MHz.
From: Analog Devices AN-716 Application Note AD9887 Versus AD9887A Design Considerations
What is the maximum operating frequency for the AD9887 analog interface?
The AD9887 analog interface is designed for 140 MHz operation.
From: Analog Devices AN-716 Application Note AD9887 Versus AD9887A Design Considerations
