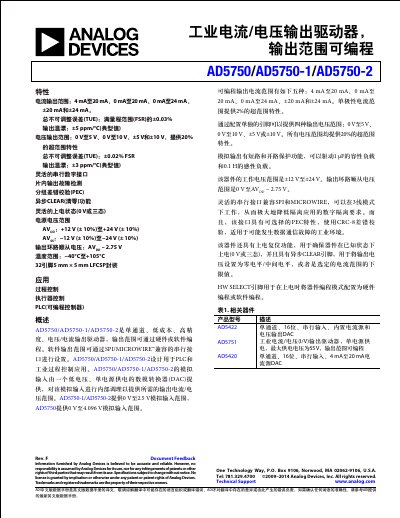

Analog Devices AD5750/AD5750-1/AD5750-2 Industrial I/V Output Driver Datasheet
The AD5750/AD5750-1/AD5750-2 are single-channel, low-cost, high-precision voltage/current output drivers designed for PLC and industrial process control applications. The output range is programmable via hardware or software through an SPI/MICROWIRE compatible serial interface.
The device features a flexible serial digital interface with optional Group Error Check (PEC) using CRC-8 error checking, suitable for industrial environments where data communication failures may occur. It includes internal output fault detection, asynchronous CLEAR functionality, and power-on reset capabilities to ensure known states upon startup. This manual is written in Chinese.
Analog Devices AD5750/AD5750-1/AD5750-2 specifications
| Output Voltage Range | 0 V to 5 V, 0 V to 10 V, ±5 V and ±10 V |
|---|---|
| Total Unadjusted Error (TUE) | ±0.03% FSR |
| Output Drift | ±5 ppm/°C (typical) |
| Power Supply Voltage AVDD | +12 V to +24 V |
| Operating Temperature Range | -40°C to +105°C |
| Package Type | 32-pin 5 mm x 5 mm LFCSP |
Source: Analog Devices AD5750/AD5750-1/AD5750-2 Industrial I/V Output Driver Datasheet
All Analog Devices AD5750/AD5750-1/AD5750-2 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Does the AD5750 include fault detection?
Yes, it features internal output short and open protection as well as chip-internal output fault detection.
From: Analog Devices AD5750/AD5750-1/AD5750-2 Industrial I/V Output Driver Datasheet
What is the interface type for programming the device?
The device uses a flexible serial digital interface compatible with SPI and MICROWIRE.
From: Analog Devices AD5750/AD5750-1/AD5750-2 Industrial I/V Output Driver Datasheet
What are the available current output ranges?
The device supports five current ranges: 4 mA to 20 mA, 0 mA to 20 mA, 0 mA to 24 mA, +20 mA, and +24 mA.
From: Analog Devices AD5750/AD5750-1/AD5750-2 Industrial Current/Voltage Output Driver Datasheet
Is the interface compatible with SPI?
Yes, the flexible serial digital interface is SPI and MICROWIRE compatible.
From: Analog Devices AD5750/AD5750-1/AD5750-2 Industrial Current/Voltage Output Driver Datasheet
