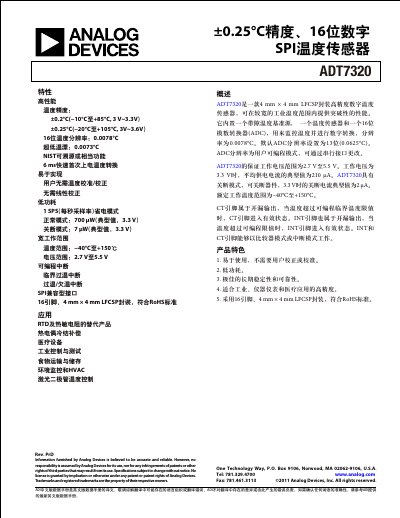

Analog Devices ADT7320 Digital SPI Temperature Sensor Datasheet
The ADT7320 is a high‑precision digital temperature sensor in a 4 mm × 4 mm LFCSP package. It integrates a band‑gap reference, temperature sensor and a 16‑bit ADC, providing a resolution of 0.0078 °C. It operates from 2.7 V to 5.5 V, with typical supply current of 210 µA at 3.3 V and a shutdown current of 2 µA.
The device features programmable over‑temperature and under‑temperature thresholds with open‑drain CT and INT pins that can work in comparator or interrupt mode. Communication is via a standard SPI interface, and the sensor is suited for industrial, instrumentation and medical applications where accuracy and low power are critical. This manual is written in Chinese.
Analog Devices ADT7320 specifications
| Temperature accuracy | ±0.25 °C (−20 °C to +105 °C, 3 V–3.6 V) |
|---|---|
| Temperature resolution | 0.0078 °C (16‑bit) |
| Supply voltage range | 2.7 V to 5.5 V |
| Operating temperature range | −40 °C to +150 °C |
| Package | 16‑pin 4 mm × 4 mm LFCSP |
Source: Analog Devices ADT7320 Digital SPI Temperature Sensor Datasheet
All Analog Devices ADT7320 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the default ADC resolution of the ADT7320?
The default ADC resolution is 13 bits, giving a temperature step of 0.0625 °C.
From: Analog Devices ADT7320 Digital SPI Temperature Sensor Datasheet
How can the ADT7320 be reset after power‑up?
Reset the serial interface by sending 32 consecutive logic‑1 bits on the DIN line after power‑up.
From: Analog Devices ADT7320 Digital SPI Temperature Sensor Datasheet
What is the temperature accuracy of the ADT7320?
The sensor provides ±0.25 °C accuracy from –20 °C to +105 °C when powered between 3.0 V and 3.6 V.
From: Analog Devices ADT7320 Temperature Sensor Preliminary Data Sheet
How much power does the ADT7320 use in normal mode?
In normal (continuous) mode it typically consumes 700 µW at a 3.3 V supply.
From: Analog Devices ADT7320 Temperature Sensor Preliminary Data Sheet
