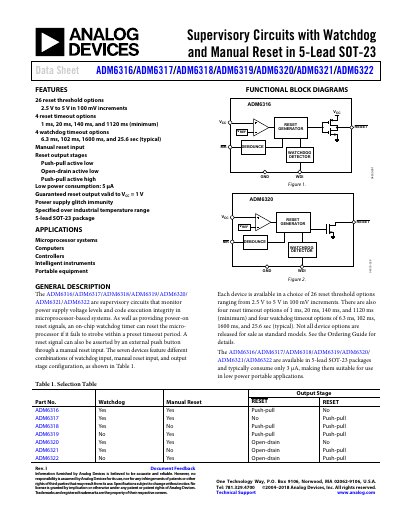

Analog Devices ADM6316-ADM6322 Supervisory Circuits Data Sheet
The ADM6316 through ADM6322 are supervisory circuits designed to monitor power supply voltage levels and code execution integrity in microprocessor-based systems. These devices provide power-on reset signals and include an on-chip watchdog timer that can reset the microprocessor if it fails to strobe within a preset timeout period. A manual reset input allows external assertion of the reset signal via a push button.
Read onlineAnalog Devices ADM6316/ADM6317/ADM6318/ADM6319/ADM6320/ADM6321/ADM6322 specifications
| Supply Current (VCC = 5.5 V) | 10 µA typical, 20 µA max |
|---|---|
| Operating Voltage Range | 2.5 V to 5.5 V |
| Reset Threshold Temperature Coefficient | 40 ppm/°C |
| Operating Temperature Range | -40°C to +85°C |
| Package Type | 5-lead SOT-23 |
Source: Analog Devices ADM6316-ADM6322 Supervisory Circuits Data Sheet
All Analog Devices ADM6316/ADM6317/ADM6318/ADM6319/ADM6320/ADM6321/ADM6322 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the reset timeout options available?
The devices feature four reset timeout options: 1 ms, 20 ms, 140 ms, and 1120 ms (minimum).
From: Analog Devices ADM6316-ADM6322 Supervisory Circuits Data Sheet
What are the watchdog timeout options?
The available watchdog timeout options are 6.3 ms, 102 ms, 1600 ms, and 25.6 sec (typical).
From: Analog Devices ADM6316-ADM6322 Supervisory Circuits Data Sheet
