Start here

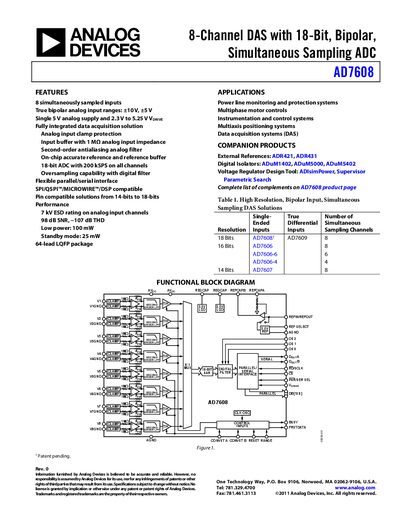

Analog Devices AD7608 Handbook
The AD7608 is an 18‑bit, 8‑channel simultaneous‑sampling analog‑to‑digital converter that operates from a single 5 V supply and supports true bipolar input ranges of +10 V and +5 V. It includes on‑chip reference, input clamp protection, a second‑order antialiasing filter, and flexible parallel/serial interfaces.
The handbook provides a functional block diagram, detailed specifications, timing diagrams, layout recommendations, and ordering information for the 64‑lead LQFP package, making it a comprehensive reference for designers integrating the AD7608 into data‑acquisition systems.
Analog Devices AD760 specifications
| Resolution | 18 bits |
|---|---|
| Number of Channels | 8 |
| Maximum Sample Rate | 200 kSPS |
| Input Voltage Range | ±10 V (range = 1) or ±5 V (range = 0) |
| Input Impedance | 1 MΩ |
| Signal‑to‑Noise Ratio (SNR) | 98 dB |
| Total Harmonic Distortion (THD) | –107 dB |
| Operating Temperature Range | −40 °C to +85 °C |
| Package | 64‑lead LQFP |
Source: Analog Devices AD7608 Datasheet
All Analog Devices AD760 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Analog Devices AD7608 Datasheet 32 p
- ANALOG DEVICES AD7607: 8-Channel DAS with 14-Bit Bipolar Simultaneous Sampling ADC Preliminary Data Sheet (Rev B 2012-02-01-) 32 p
- Analog Devices AD760 Datasheet 12 p
- Analog Devices AD7608 8‑Channel 18‑Bit ADC Datasheet 32 p
- Analog Devices AD7609 Datasheet Rev A 36 p
- Analog Devices AD7606-6 Datasheet 36 p
- Analog Devices AD7607 Datasheet 31 p
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum input voltage range of the AD7608?
The AD7608 accepts true bipolar inputs of ±10 V (range = 1) or ±5 V (range = 0).
What sampling rate can the AD7608 achieve?
It can sample at up to 200 kSPS across all eight channels.
What is the maximum sampling rate of the AD7607?
The device supports a throughput rate of up to 200 kSPS for all eight channels.
Does the AD7607 require an external reference voltage?
No, it includes a built-in 2.5 V reference and reference buffer, though an external one can be used.
How is the AD760 calibrated?
Self‑calibration is started by pulling the CAL pin low, and the CALOK pin goes high when calibration has completed.
What input data formats does the AD760 accept?
Data can be loaded as straight binary, serial data, or two 8‑bit bytes; serial mode supports 16‑ or 18‑bit data.
