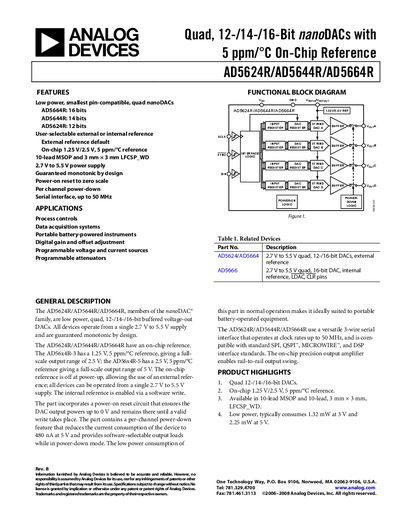

Analog Devices AD5624R/AD5644R/AD5664R NanoDACs Datasheet
The AD5624R/AD5644R/AD5664R family are low‑power, quad, buffered voltage‑output DACs offering 12‑, 14‑ or 16‑bit resolution. They operate from a single 2.7 V to 5.5 V supply and include an on‑chip reference that can be disabled for external reference use. The devices guarantee monotonic behavior by design and feature per‑channel power‑down to reduce consumption.
A versatile 3‑wire serial interface supports SPI, QSPI, MICROWIRE and DSP standards up to 50 MHz. The on‑chip output amplifier provides rail‑to‑rail swing, and the parts are offered in 10‑lead MSOP and 3 mm × 3 mm LFCSP packages. The datasheet includes specifications, timing diagrams, absolute maximum ratings and ordering information.
Analog Devices AD5624 specifications
| Resolution (AD5664R) | 16 Bits |
|---|---|
| Resolution (AD5644R) | 14 Bits |
| Resolution (AD5624R) | 12 Bits |
| Supply Voltage Range | 2.7 V to 5.5 V |
| Typical Power Consumption | 1.32 mW at 3 V, 2.25 mW at 5 V |
| Output Voltage Range | 0 V to Vop |
| Serial Interface Speed | Up to 50 MHz |
Source: Analog Devices AD5624R/AD5644R/AD5664R NanoDACs Datasheet
All Analog Devices AD5624 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating supply voltage range for the AD5624R/AD5644R/AD5664R devices?
The devices operate from a single 2.7 V to 5.5 V power supply.
From: Analog Devices AD5624R/AD5644R/AD5664R NanoDACs Datasheet
What resolution does the AD5624R provide?
The AD5624R provides a 12‑bit resolution.
From: Analog Devices AD5624R/AD5644R/AD5664R NanoDACs Datasheet
What is the supply voltage range for the AD5624/AD5664?
The devices operate from a single 2.7 V to 5.5 V supply.
What is the maximum serial clock frequency supported?
The serial interface can run at clock rates up to 50 MHz.
