Start here

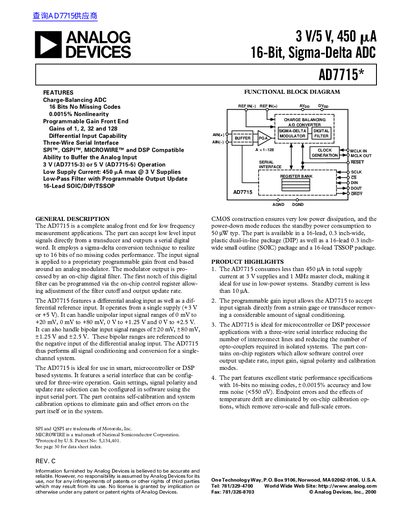

Analog Devices AD7715 3 V/5 V 450 pA 16-Bit Sigma-Delta ADC Datasheet
The AD7715 is a complete analog front end for low frequency measurement applications designed to accept low level input signals directly from a transducer. It employs a sigma-delta conversion technique to achieve up to 16 bits of no missing codes performance and features a proprietary programmable gain front end with gains of 1, 2, 32, and 128.
The device operates from single supplies of +3 V or +5 V and includes a three-wire serial interface compatible with SPI, QSPI, MICROWIRE, and DSP protocols. It features on-chip self-calibration and system calibration options to eliminate gain and offset errors, making it ideal for smart systems based on microcontrollers or DSPs.
Analog Devices AD7715 specifications
| Resolution | 16 Bits |
|---|---|
| Integral Nonlinearity | +0.0015 % of FSR max |
| Supply Voltage | 3 V or 5 V |
| Supply Current | 450 pA max @ 3 V Supplies |
| Gain Settings | 1, 2, 32 and 128 |
Source: Analog Devices AD7715 3 V/5 V 450 pA 16-Bit Sigma-Delta ADC Datasheet
All Analog Devices AD7715 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply current for the AD7715 at 3 V?
The device consumes less than 450 A in total supply current when operating at 3 V supplies and a 1 MHz master clock.
From: Analog Devices AD7715 3 V/5 V 450 pA 16-Bit Sigma-Delta ADC Datasheet
What is the maximum absolute voltage for the analog input?
The absolute maximum common-mode voltage for the analog input is AVpp - 1.5 V.
From: Analog Devices AD7715 3 V/5 V 450 pA 16-Bit Sigma-Delta ADC Datasheet
What is the maximum supply current of the AD7715 at 3 V?
The device draws no more than 450 pA from a 3 V supply.
What input voltage ranges does the AD7715 support?
It supports unipolar ranges of 0‑20 mV, 0‑80 mV, 0‑1.25 V and 0‑2.5 V, as well as bipolar ranges of ±20 mV, ±80 mV, ±1.25 V and ±2.5 V.
What is the maximum supply current of the AD7715?
The AD7715 draws up to 450 µA from a 3 V supply.
Which serial interfaces are supported by the AD7715?
It supports SPI, QSPI, Microwire and DSP‑compatible three‑wire serial interfaces.
