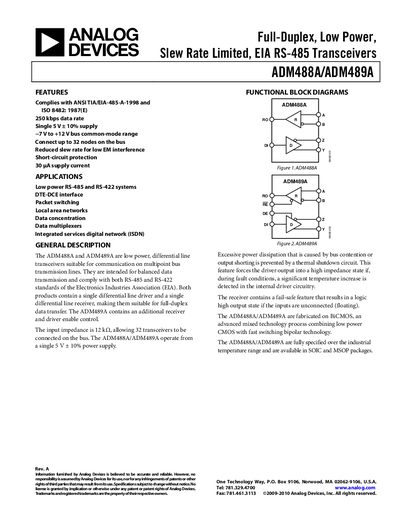

Analog Devices ADM488A/ADM489A Datasheet Rev A
The ADM488A and ADM489A are low‑power, full‑duplex differential line transceivers that meet RS‑485 and RS‑422 standards. They operate from a single 5 V + 10 % supply and support up to 32 nodes on a bus, with features such as reduced slew rate, short‑circuit protection and thermal shutdown.
The document provides detailed electrical specifications, timing parameters, absolute maximum ratings, pin configurations for SOIC and MSOP packages, and an ordering guide for the various temperature‑rated part numbers.
Analog Devices ADM488A specifications
| Supply voltage | 5 V + 10 % |
|---|---|
| Maximum data rate | 250 kbps |
| Input impedance | 12 kΩ |
| Supply current (outputs unloaded) | 30 µA |
| Operating temperature range (industrial) | -40 °C to +85 °C |
All Analog Devices ADM488A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum data rate of the ADM488A?
The ADM488A supports a maximum data rate of 250 kbps.
What supply voltage does the ADM488A require?
The device operates from a single 5 V + 10 % supply.
What is the maximum data rate supported by the transceivers?
Both parts support a maximum data rate of 250 kbps.
What protection is provided against short‑circuit conditions?
The devices include short‑circuit protection and a thermal shutdown circuit that forces the driver output to high‑impedance when excessive temperature is detected.
What is the maximum data rate of the ADM488/ADM489?
The devices support up to 250 kbps data rate.
What supply voltage do the ADM488/ADM489 require?
They operate from a single 5 V supply with a ±10 % tolerance.
