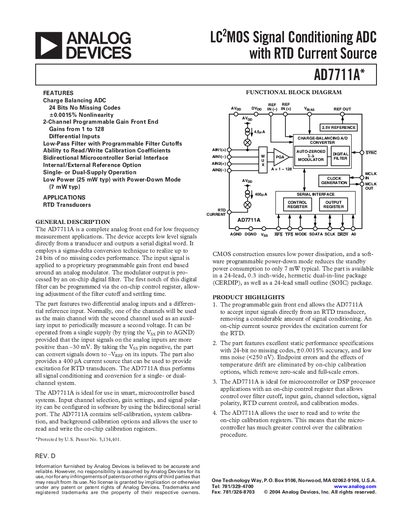

Analog Devices AD7711A Signal Conditioning ADC Datasheet
The AD7711A is a complete analog front‑end for low‑frequency measurement applications. It provides a 24‑bit sigma‑delta conversion with programmable gain (1‑128), differential inputs, and an on‑chip 400 µA RTD excitation current. The device can operate from a single 5‑10 V supply or dual supplies and includes a low‑power mode (7 mW typical).
The datasheet details electrical specifications, pin configurations, timing characteristics, and calibration options. It also lists absolute maximum ratings, recommended operating conditions, and ESD sensitivity warnings for designers integrating the part into microcontroller‑based systems.
Analog Devices AD7711A specifications
| Resolution | 24 bits |
|---|---|
| Supply Voltage (AVpp) | 5 V to 10 V |
| Typical Power Consumption (Normal Mode) | 25 mW |
| Gain Range | 1 to 128 |
| Input Noise (RMS) | <250 nV |
Source: Analog Devices AD7711A Signal Conditioning ADC Datasheet
All Analog Devices AD7711A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input voltage range for normal operation?
The input voltage range depends on the selected gain; for unipolar mode it is 0 to +VGG‑1 V, and for bipolar mode it is ±VGG‑1 V.
From: Analog Devices AD7711A Signal Conditioning ADC Datasheet
What are the recommended supply voltages for the device?
The AD7711A operates from a positive supply (AVpp) of 5 V to 10 V and a negative supply (Vss) that can be tied to AGND for single‑supply operation.
From: Analog Devices AD7711A Signal Conditioning ADC Datasheet
What is the resolution of the AD7711A ADC?
The AD7711A provides a 24‑bit resolution with no missing codes.
From: Analog Devices AD7711A Signal Conditioning ADC Handbook
What supply voltage range does the AD7711A support?
It operates from 5 V to 10 V nominal (AVpp) with a ±5 % tolerance for specified performance.
From: Analog Devices AD7711A Signal Conditioning ADC Handbook
