Start here

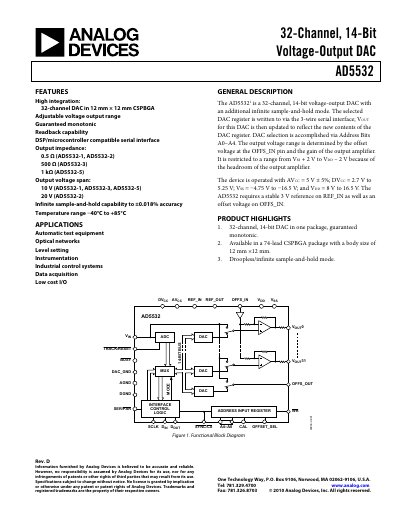

Analog Devices AD5532 32-Channel 14-Bit Voltage-Output DAC Data Sheet
The AD5532 provides 32 independent 14‑bit DAC channels in a 12 mm × 12 mm CSPBGA package. It features guaranteed monotonic performance, droop‑less infinite sample‑and‑hold, and selectable output voltage ranges set by the OFFS_IN pin and output‑amp gain. Both 3‑wire serial and 5‑wire parallel interfaces are supported, with optional ISHA mode for simultaneous acquisition.
Typical applications include automatic test equipment, optical networking, instrumentation, and industrial control systems. The device operates from standard analog and digital supplies (VDD 8‑16.5 V, VSS –4.75‑‑16.5 V, AVCC 5 V, DVCC 2.7‑5.25 V) and offers a reference input of 3 V. Detailed timing diagrams, pin configurations, and microprocessor interfacing examples are provided.
Analog Devices AD5532 specifications
| Number of channels | 32 |
|---|---|
| Output impedance (AD5532‑1) | 0.5 Ω |
| Output voltage range | VSS + 2 V to VDD – 2 V |
| Supply voltage VDD | 8 V to 16.5 V |
| Supply voltage VSS | –4.75 V to –16.5 V |
| Operating temperature range | –40 °C to +85 °C |
Source: Analog Devices AD5532 32-Channel 14-Bit Voltage-Output DAC Data Sheet
All Analog Devices AD5532 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum serial clock frequency?
The serial interface supports up to 14 MHz (20 MHz in ISHA mode).
From: Analog Devices AD5532 32-Channel 14-Bit Voltage-Output DAC Data Sheet
How many DAC channels does the AD5532 provide?
The AD5532 contains 32 independent DAC channels.
From: Analog Devices AD5532 32-Channel 14-Bit Voltage-Output DAC Data Sheet
How many DAC channels does the AD5532HS provide?
The AD5532HS contains 32 independent DAC channels in a single package.
From: Analog Devices AD5532HS 32‑Channel 14‑Bit DAC Datasheet
What is the maximum serial clock frequency for the AD5532HS?
The serial interface can operate at clock rates up to 30 MHz.
From: Analog Devices AD5532HS 32‑Channel 14‑Bit DAC Datasheet
How many channels does the AD5532B have?
The AD5532B provides 32 independent DAC channels.
From: Analog Devices AD5532B 32‑Channel 14‑Bit DAC Datasheet
What is the resolution of the AD5532B DAC?
It has a 14‑bit resolution.
From: Analog Devices AD5532B 32‑Channel 14‑Bit DAC Datasheet
