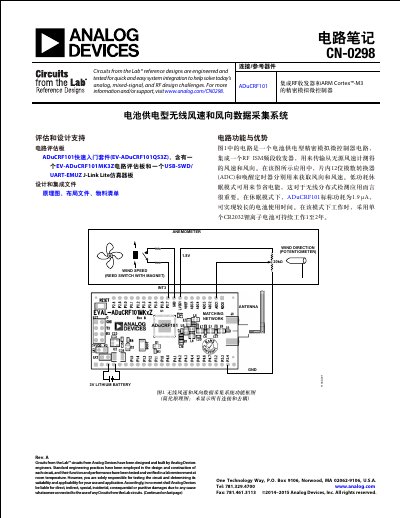

Analog Devices ADuCRF101 Wireless Wind Speed and Direction Data Acquisition System Circuit Design Guide
This document provides circuit design and evaluation information for the ADuCRF101, a battery-powered wireless data acquisition system. It integrates a 12-bit ADC, a Cortex-M3 microcontroller, and an RF ISM band transceiver to measure wind speed via reed switches and wind direction via potentiometers.
The guide details the use of the EV-ADuCRF101MK3Z evaluation board optimized for the 433 MHz frequency. It describes the system's operation in low-power hibernate modes, where the device wakes up only when necessary to transmit data, allowing a CR2032 lithium battery to last approximately one year under specific test conditions.
Analog Devices ADuCRF101 specifications
| ADC Resolution | 12-bit or 14-bit |
|---|---|
| Supply Voltage Range | 2.2 V to 3.6 V |
| Operating Temperature Range | -40°C to +85°C |
| Flash Memory | 128k/64k Bytes |
| SRAM | 16k/8k Bytes |
| RF Frequency Bands | 431 MHz to 464 MHz, 862 MHz to 928 MHz |
| Receiver Sensitivity (BER) | -107.5 dBm at 38.4 kbps |
| Power Consumption (Shutdown) | 680 nA |
Source: Analog Devices ADuCRF101 Precision Analog Microcontroller Datasheet
