Start here

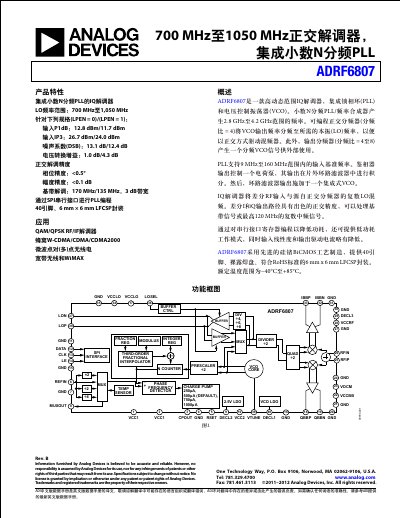

Analog Devices ADRF6807 IQ Demodulator Datasheet
The ADRF6807 is a high dynamic range IQ demodulator that integrates a fractional-N PLL and voltage-controlled oscillator (VCO). It supports local oscillator (LO) frequency ranges from 700 MHz to 1,050 MHz and includes features such as input P1dB, input IP3, and noise figure specifications. The device is suitable for applications including QAM/QPSK RF/IF demodulators and cellular W-CDMA/CDMA/CDMA2000 systems.
The document provides detailed technical specifications, timing characteristics, absolute maximum ratings, pin configurations, and application information. It covers the frequency synthesizer/PLL operation, LO quadrature drive, mixer functionality, and bias circuits, along with register programming examples for setting up the device. This manual is written in Chinese.
Analog Devices ADRF6807 specifications
| LO Frequency Range | 700 MHz to 1,050 MHz |
|---|---|
| Input P1dB (Standard Power Mode) | 12.8 dBm |
| Noise Figure (DSB, Standard Mode) | 13.1 dB |
| Voltage Conversion Gain (Standard Mode) | 1.0 dB |
| Phase Accuracy | < 0.5° |
| Amplitude Accuracy | < 0.1 dB |
| Baseband Demodulation Bandwidth (Standard Mode) | 170 MHz |
| VCO Output Frequency Range | 2.8 GHz to 4.2 GHz |
| Package Type | 40-pin, 6 mm x 6 mm LFCSP |
All Analog Devices ADRF6807 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the LO frequency range of the ADRF6807?
The device supports a local oscillator (LO) frequency range from 700 MHz to 1,050 MHz.
Does the ADRF6807 include an integrated PLL?
Yes, it is a high dynamic range IQ demodulator that integrates a fractional-N PLL and VCO.
What is the LO frequency range of the ADRF6807?
The LO frequency range is 700 MHz to 1050 MHz.
From: Analog Devices ADRF6807 Quadrature Demodulator Data Sheet
What is the input P1dB in standard power mode?
The input P1dB is 12.8 dBm in standard power mode.
From: Analog Devices ADRF6807 Quadrature Demodulator Data Sheet
