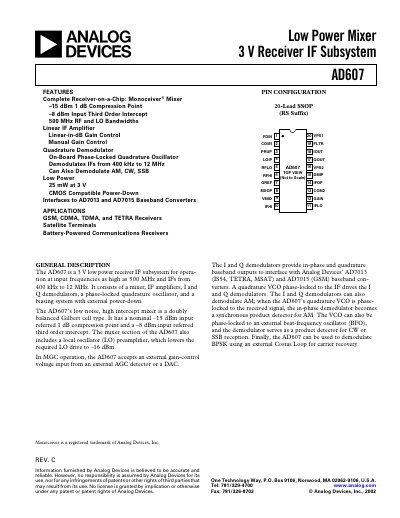

Analog Devices AD607 Low Power Mixer Receiver IF Subsystem Datasheet
The AD607 is a complete Receiver-on-a-Chip designed as a low power receiver intermediate frequency (IF) subsystem. It operates at input frequencies as high as 500 MHz with IFs ranging from 400 kHz to 12 MHz. The device integrates a Monoceiver® mixer, linear IF amplifiers, I and Q demodulators, and a phase-locked quadrature oscillator.
Read onlineAnalog Devices AD607 specifications
| Maximum RF and LO Frequency Range | 500 MHz |
|---|---|
| Input 1 dB Compression Point (RF) | -15 dBm |
| Input Third-Order Intercept (RF) | -8 dBm |
| Noise Figure (Matched Input, Max Gain, f = 10.7 MHz) | 14 dB |
| Supply Voltage Range (2.92 V to 5.5 V) | 2.92 V to 5.5 V |
| Power-Down Standby Current | 550 µA |
Source: Analog Devices AD607 Low Power Mixer Receiver IF Subsystem Datasheet
All Analog Devices AD607 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the typical applications for the AD607?
The device is suitable for GSM, CDMA, TDMA, and TETRA receivers, satellite terminals, and battery-powered communications receivers.
From: Analog Devices AD607 Low Power Mixer Receiver IF Subsystem Datasheet
What is the frequency range of the IF demodulators?
The I and Q demodulators can demodulate IFs from 400 kHz to 12 MHz.
From: Analog Devices AD607 Low Power Mixer Receiver IF Subsystem Datasheet
What is the supply voltage range for the AD607?
The supply voltage range is 2.7 V to 5.5 V.
From: Analog Devices AD607 Low Power Mixer/AGC/RSSI Receiver IF Subsystem Datasheet
Can the AD607 demodulate SSB signals?
Yes, the AD607 can demodulate AM, CW, SSB, and BPSK signals.
From: Analog Devices AD607 Low Power Mixer/AGC/RSSI Receiver IF Subsystem Datasheet
