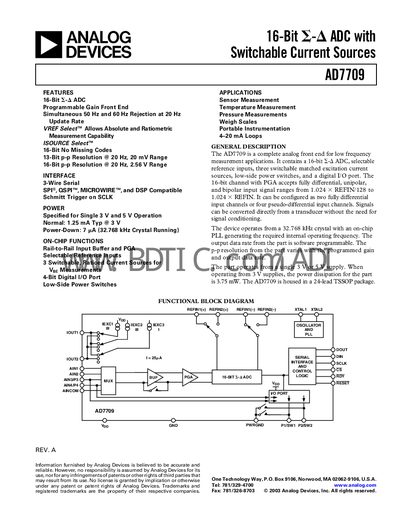

Analog Devices AD7709 Datasheet Handbook
The AD7709 is a 16‑bit sigma‑delta ADC with programmable gain, switchable current sources, and on‑chip rail‑to‑rail input buffers. It supports single‑supply operation at 3 V or 5 V and offers simultaneous 50 Hz and 60 Hz line‑frequency rejection. The device includes a 3‑wire serial interface compatible with SPI, QSPI, Microwire, and DSP protocols.
The document provides a functional block diagram, detailed specifications, timing characteristics, pin configuration, and application notes such as sensor measurement, temperature, pressure, and 4‑20 mA loop instrumentation. Ordering information, absolute maximum ratings, and ESD handling guidelines are also included.
Analog Devices AD7709 specifications
| Resolution (20 mV range) | 13 bits p‑p |
|---|---|
| Resolution (2.56 V range) | 16 bits p‑p |
| Supply Voltage | Single 3 V or 5 V operation |
| Normal Power Consumption @ 3 V | 1.25 mA typ |
| Power‑down Current (crystal running) | 7 pA |
All Analog Devices AD7709 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltages does the AD7709 support?
It is specified for single‑supply operation at either 3 V or 5 V.
How much power does the AD7709 draw in normal mode at 3 V?
Typical normal‑mode current consumption is 1.25 mA at 3 V.
What is the operating temperature range of the AD7709?
The AD7709 operates from –40 °C to +85 °C.
How many pins does the AD7709 package have?
The AD7709 is housed in a 24‑lead TSSOP package.
