Analog Devices EVAL-ADM1191/ADM1192 Evaluation Kit User Manual

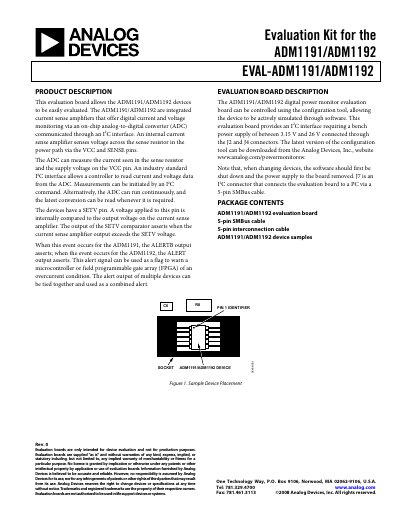

The Analog Devices EVAL-ADM1191/ADM1192 evaluation board allows users to easily evaluate the ADM1191 and ADM1192 integrated current sense amplifiers. These devices offer digital current and voltage monitoring via an on-chip analog-to-digital converter (ADC) communicated through an I²C interface. The board includes an internal current sense amplifier that senses voltage across a sense resistor in the power path via the VCC and SENSE pins.
Read onlineAnalog Devices ADM1191 specifications
| Maximum Load Current | 550 mA |
|---|---|
| Interface Type | I²C |
| Power Supply Range | 3.15 V to 26 V |
Source: Analog Devices EVAL-ADM1191/ADM1192 Evaluation Kit User Manual
All Analog Devices ADM1191 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the purpose of the VR1 component on the board?
VR1 adjusts a variable load; turning it clockwise reduces the load resistance, thereby increasing the load current to a maximum of 550 mA.
From: Analog Devices EVAL-ADM1191/ADM1192 Evaluation Kit User Manual
How are multiple evaluation boards connected in parallel?
Two or more boards can be connected in parallel through the J1 and J5 connectors using the 5-pin interconnection cable.
From: Analog Devices EVAL-ADM1191/ADM1192 Evaluation Kit User Manual
What is the supply voltage range for the ADM1191?
The device operates from 3.15 V up to 26 V.
From: Analog Devices ADM1191 Digital Power Monitor Datasheet
How many I²C addresses can be configured on the ADM1191?
Up to 16 unique I²C addresses can be set using the A0 and A1 pins.
From: Analog Devices ADM1191 Digital Power Monitor Datasheet
