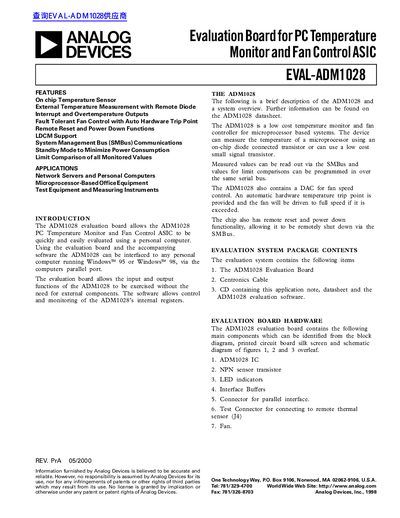

Analog Devices EVAL-ADM1028 Evaluation Board User Guide
The document provides an overview of the ADM1028 Evaluation Board (EVAL-ADM1028), which allows users to quickly evaluate the ADM1028 PC Temperature Monitor and Fan Control ASIC. The board includes the main IC, a fan, LED indicators for status monitoring, and connectors for parallel interface or SMBus communication.
Read onlineAnalog Devices ADM1028 specifications
| Supply Voltage | 3.0 V to 5.5 V |
|---|---|
| Supply Current | 2 mA (Typ) |
| Internal Sensor Accuracy | +3 °C |
| External Diode Sensor Accuracy | +5 °C |
| Resolution | 1 °C |
| Output Voltage Range | 0 to 2.5 V |
| Clock Frequency | 100 kHz |
| Maximum Junction Temperature | 150°C |
Source: Analog Devices ADM1028 Remote Thermal Diode Monitor Datasheet
All Analog Devices ADM1028 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What are the applications for the ADM1028?
The ADM1028 is ideal for network servers, personal computers, microprocessor-based office equipment, and test equipment.
From: Analog Devices ADM1028 Remote Thermal Diode Monitor Datasheet
Does the ADM1028 support remote temperature sensing?
Yes, it allows the temperature of a remote sensor diode to be measured for monitoring processor temperature.
From: Analog Devices ADM1028 Remote Thermal Diode Monitor Datasheet
What operating systems are supported by this evaluation board?
The ADM1028 can be interfaced to any personal computer running Windows 95 or Windows 98.
From: Analog Devices EVAL-ADM1028 Evaluation Board User Guide
What are the two communication methods for the software?
The user can choose between connecting the evaluation board via the printer port or via the SMBus.
From: Analog Devices EVAL-ADM1028 Evaluation Board User Guide
