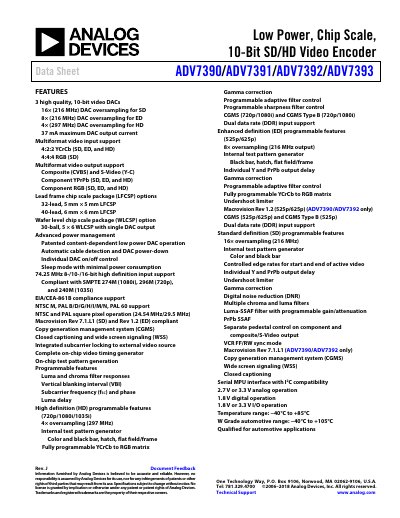

Analog Devices ADV7390/ADV7391/ADV7392/ADV7393 Video Encoder Datasheet
The ADV7390/ADV7391/ADV7392/ADV7393 family are low‑power, chip‑scale video encoders that convert digital video streams to analog formats. They support standard‑definition, enhanced‑definition, and high‑definition video with 10‑bit DACs and offer composite, S‑Video, component YPrPb and RGB outputs.
Key features include multiple oversampling options (16× at 216 MHz for SD, 4× at 297 MHz for HD), automatic cable detection, DAC power‑down, and sleep mode for minimal power consumption. The devices are offered in 32‑lead LFCSP, 40‑lead LFCSP, and wafer‑level chip‑scale packages, and are qualified for automotive temperature ranges.
Analog Devices ADV7390 specifications
| Supply voltage VDD | 1.71 V – 1.89 V |
|---|---|
| Maximum DAC output current | 37 mA |
| SD DAC oversampling | 16× at 216 MHz |
| HD DAC oversampling | 4× at 297 MHz |
| Operating temperature range | −40 °C to +85 °C (−40 °C to +105 °C automotive) |
Source: Analog Devices ADV7390/ADV7391/ADV7392/ADV7393 Video Encoder Datasheet
All Analog Devices ADV7390 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What video output formats does the ADV7390 family support?
It supports composite (CVBS), S‑Video (Y‑C), component YPrPb for SD, ED, and HD, and component RGB for SD, ED, and HD.
From: Analog Devices ADV7390/ADV7391/ADV7392/ADV7393 Video Encoder Datasheet
