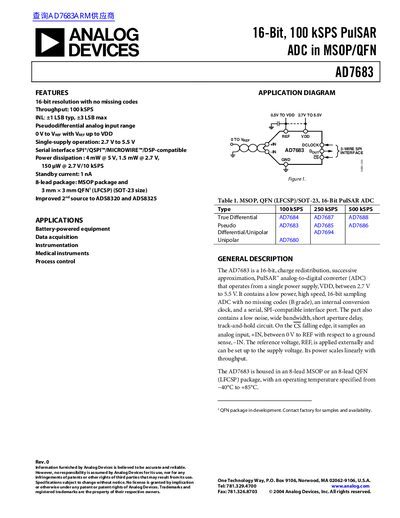

ANALOG DEVICES AD7683 16-Bit 100 kSPS PulSAR ADC in MSOP/QFN handbook
The AD7683 is a 16-bit charge redistribution, successive approximation ADC that operates from a single power supply between 2.7 V and 5.5 V. It features no missing codes (B grade), an internal conversion clock, and a serial SPI-compatible interface port.
Read onlineAnalog Devices AD768 specifications
| Resolution | 16 Bits |
|---|---|
| Throughput Rate | 100 kSPS |
| Supply Voltage Range | 2.7 V to 5.5 V |
| Operating Temperature Range | -40°C to +85°C |
| Package Types | MSOP, QFN (LFCSP) |
Source: ANALOG DEVICES AD7683 16-Bit 100 kSPS PulSAR ADC in MSOP/QFN handbook
