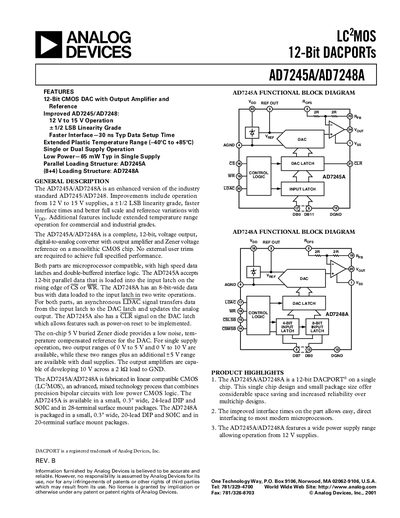

Analog Devices AD7245A/AD7248A 12-Bit DACPORT Datasheet
The AD7245A and AD7248A are enhanced versions of the industry-standard AD7245/AD7248, featuring a 12-bit voltage output digital-to-analog converter with an on-chip output amplifier and Zener voltage reference. These devices are fabricated in linear compatible CMOS (LC2MOS) technology, combining precision bipolar circuits with low power CMOS logic to achieve high precision and reliability without external user trims.
Read onlineAnalog Devices AD7245A/AD7248A specifications
| Resolution | 12 Bits |
|---|---|
| Operating Temperature Range | –40 °C to +85 °C |
| Power Supply Range | 12 V to 15 V |
| Typical Power Consumption | 65 mW |
| Output DC Impedance | 0.5 Ω typ |
Source: Analog Devices AD7245A/AD7248A 12-Bit DACPORT Datasheet
All Analog Devices AD7245A/AD7248A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the resolution of the AD7245A/AD7248A?
The device features a 12-bit resolution.
From: Analog Devices AD7245A/AD7248A 12-Bit DACPORT Datasheet
Is the AD7245A/AD7248A ESD sensitive?
Yes, it is an ESD sensitive device, and proper precautions are recommended to avoid performance degradation.
From: Analog Devices AD7245A/AD7248A 12-Bit DACPORT Datasheet
What is the resolution of the AD7245A/AD7248A DAC?
The device provides a 12‑bit resolution.
What supply voltage range does the AD7245A/AD7248A support?
It operates from 12 V up to 15 V supplies.
