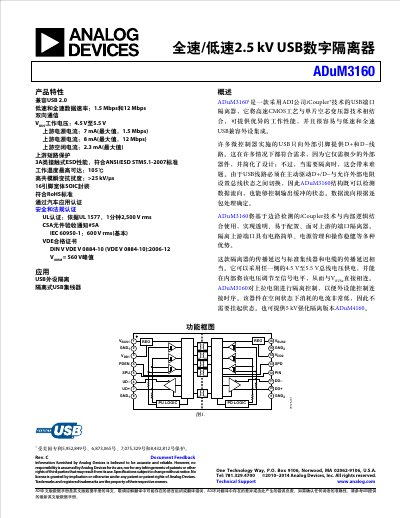

Analog Devices ADuM3160 USB Isolator Datasheet
The ADuM3160 is a USB port isolator that combines high-speed CMOS processes with monolithic air-core transformer technology to provide excellent performance for low-speed (1.5 Mbps) and full-speed (12 Mbps) USB applications. It features bidirectional communication, supports VBUS voltages from 4.5 V to 5.5 V, and includes upstream power supply current protection up to 8 mA.
Read onlineAnalog Devices ADuM3160 specifications
| Data rates | 1.5 Mbps (low speed) and 12 Mbps (full speed) |
|---|---|
| Supply current at 1.5 Mbps | 7 mA |
| Supply current at 12 Mbps | 8 mA |
| Operating temperature range | -40 °C to +105 °C |
| Maximum isolation voltage | 2500 V rms for 1 minute |
| Package type | 16‑lead SOIC wide‑body |
Source: Analog Devices ADuM3160 USB Digital Isolator Datasheet
All Analog Devices ADuM3160 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating temperature for this isolator?
The device can operate at temperatures up to 105°C.
What is the maximum upstream supply current when running at full speed?
The maximum upstream supply current is 8 mA at 12 Mbps.
What is the maximum isolation voltage rating of the ADuM3160?
The device is rated for 2500 V rms isolation for 1 minute according to UL 1577.
From: Analog Devices ADuM3160 USB Digital Isolator Datasheet
What supply voltage range does the ADuM3160 require?
It operates with V_EUS between 4.5 V and 5.5 V.
From: Analog Devices ADuM3160 USB Digital Isolator Datasheet
