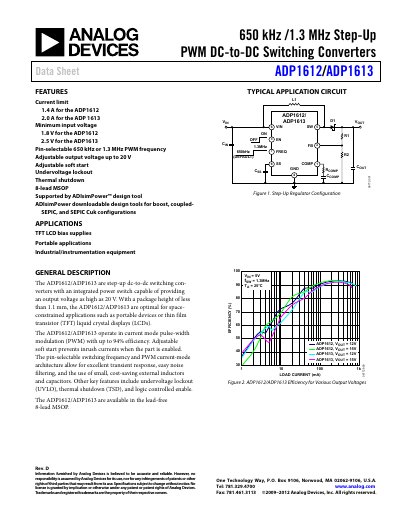

Analog Devices ADP1612/ADP1613 Step-Up PWM DC-to-DC Switching Converters Data Sheet
The ADP1612 and ADP1613 are step‑up DC‑to‑DC switching converters with an integrated power switch, offering adjustable output up to 20 V and high efficiency (up to 94 %). They are packaged in an 8‑lead MSOP and target space‑constrained applications such as portable devices and TFT LCD bias supplies. Features include current‑limit of 1.4 A (ADP1612) or 2.0 A (ADP1613), pin‑selectable switching frequency (650 kHz or 1.3 MHz), soft‑start, UVLO, and thermal shutdown.
The datasheet details electrical specifications, absolute maximum ratings, pin functions, typical performance curves, and design guidelines such as inductor and capacitor selection. It also includes a typical application circuit, PCB layout recommendations, outline dimensions, and an ordering guide for the MSOP package.
Analog Devices ADP1612/ADP1613 specifications
| Input Voltage (VIN) Range | ADP1612: 1.8 V–5.5 V; ADP1613: 2.5 V–5.5 V |
|---|---|
| Maximum Output Voltage | 20 V |
| Current Limit | ADP1612: 1.4 A; ADP1613: 2.0 A |
| Switching Frequency Options | 650 kHz or 1.3 MHz (pin‑selectable) |
| Package | 8‑lead MSOP |
Source: Analog Devices ADP1612/ADP1613 Step-Up PWM DC-to-DC Switching Converters Data Sheet
All Analog Devices ADP1612/ADP1613 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output voltage of the ADP1612/ADP1613?
The converters can be adjusted to provide up to 20 V output.
From: Analog Devices ADP1612/ADP1613 Step-Up PWM DC-to-DC Switching Converters Data Sheet
What input voltage range does the ADP1612 support?
ADP1612 operates from 1.8 V to 5.5 V input.
From: Analog Devices ADP1612/ADP1613 Step-Up PWM DC-to-DC Switching Converters Data Sheet
What switching frequencies can be selected for the ADP1612/ADP1613?
The device can be set to either 650 kHz or 1.3 MHz using the FREQ pin.
What is the maximum output voltage the converters can provide?
Both converters can generate an adjustable output voltage up to 20 V.
What is the maximum output voltage of the ADP1612/ADP1613?
The converters can provide an output voltage as high as 20 V.
From: Analog Devices ADP1612/ADP1613 Step‑Up PWM DC‑to‑DC Switching Converters Datasheet
How is the switching frequency selected?
Connect the FREQ pin to GND for 650 kHz or to VIN for 1.3 MHz.
From: Analog Devices ADP1612/ADP1613 Step‑Up PWM DC‑to‑DC Switching Converters Datasheet
