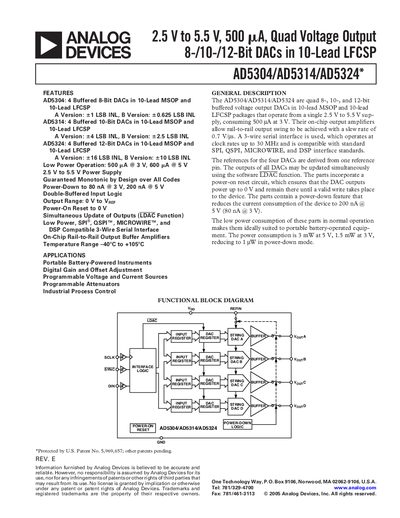

AD5304/AD5314/AD5324 Quad Voltage Output DACs Datasheet
The AD5304/AD5314/AD5324 are quad 8-, 10-, and 12-bit buffered voltage output DACs available in 10-lead MSOP and LFCSP packages. They operate from a single 2.5 V to 5.5 V supply and consume low power, making them suitable for portable battery-powered instruments. The devices feature on-chip rail-to-rail output buffer amplifiers and a 3-wire serial interface compatible with SPI, QSPI, MICROWIRE, and DSP standards.
Read onlineAnalog Devices AD5304/AD5314/AD5324 specifications
| Resolution | 8, 10, or 12 Bits |
|---|---|
| Power Supply Range | 2.5 V to 5.5 V |
| Supply Current (Normal) | 500 µA @ 3 V |
| Power-Down Current | 80 nA @ 3 V |
| Operating Temperature | -40 °C to +105 °C |
| Output Voltage Range | 0 V to V REF |
| Interface Compatibility | SPI, QSPI, MICROWIRE, DSP |
Source: AD5304/AD5314/AD5324 Quad Voltage Output DACs Datasheet
All Analog Devices AD5304/AD5314/AD5324 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical supply current at 3V?
The typical supply current is 500 µA at 3 V.
From: AD5304/AD5314/AD5324 Quad Voltage Output DACs Datasheet
What is the power-down current at 5V?
The power-down current is 200 nA at 5 V.
From: AD5304/AD5314/AD5324 Quad Voltage Output DACs Datasheet
