ADT7420 ±0.25°C Accuracy, 16-Bit Digital I2C Temperature Sensor

ADT7420 ±0.25°C Accuracy, 16-Bit Digital I2C Temperature Sensor

Datasheet 24 pages · 565 KB · ZH

The ADT7420 is a high-precision digital temperature sensor featuring a 16-bit resolution and an accuracy of ±0.25°C over an extended temperature range. It utilizes an I2C interface for communication and includes features such as programmable interrupt thresholds and low-power shutdown modes. The device is housed in a 16-lead 4 mm × 4 mm LFCSP package and is RoHS compliant.

The document provides comprehensive technical specifications, including temperature accuracy under various voltage and temperature conditions, power consumption in different modes (Normal, 1 SPS, Shutdown), and I2C timing parameters. It also details the pin configuration, register maps for configuration and status, and application information for thermal response and power decoupling. This manual is written in Chinese.

Read online

Analog Devices ADT7420 ( specifications

ADC Resolution16 bits
Temperature Resolution0.0078°C
Supply Voltage Range2.7 V to 5.5 V
Normal Mode Power Consumption700 µW
Shutdown Mode Current2.0 µA
Package Type16-lead 4 mm × 4 mm LFCSP
I2C Clock Frequency400 kHz

Source: ADT7420 ±0.25°C Accuracy, 16-Bit Digital I2C Temperature Sensor

All Analog Devices ADT7420 ( documents by type

Datasheet 2

Ratings, dimensions and ordering codes, for selection and design work.

Questions answered in these manuals

What is the resolution of the ADT7420?

The device offers a 16-bit temperature resolution, providing a resolution of 0.0078°C.

From: ADT7420 ±0.25°C Accuracy, 16-Bit Digital I2C Temperature Sensor

What is the operating voltage range for the ADT7420?

The device operates with a supply voltage between 2.7 V and 5.5 V.

From: ADT7420 ±0.25°C Accuracy, 16-Bit Digital I2C Temperature Sensor

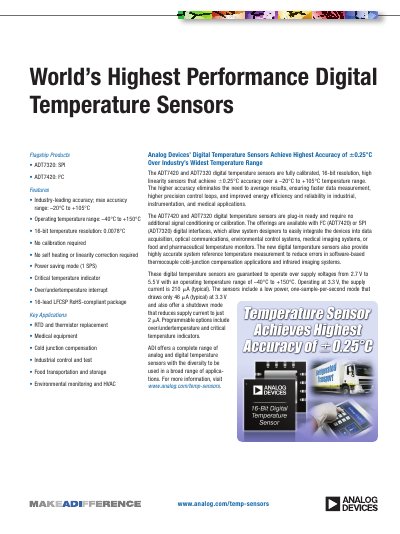

What is the accuracy of the ADT7320 and ADT7420 sensors?

They achieve an accuracy of ±0.25°C over a temperature range of -20°C to +105°C.

From: Analog Devices Temperature Sensors Selection Guide

Do the ADT7320 and ADT7420 require calibration?

No, these sensors are fully calibrated and require no additional signal conditioning or calibration.

From: Analog Devices Temperature Sensors Selection Guide

What is the temperature accuracy of the ADT7420?

The sensor achieves ±0.20 °C accuracy from ‑10 °C to +85 °C (3.0 V‑3.3 V) and ±0.25 °C from ‑20 °C to +105 °C (3.0 V‑3.6 V).

From: Analog Devices ADT7420 Digital I2C Temperature Sensor Datasheet

How much power does the ADT7420 use in normal mode?

In normal (continuous) mode it consumes about 700 µW at a 3.3 V supply.

From: Analog Devices ADT7420 Digital I2C Temperature Sensor Datasheet
