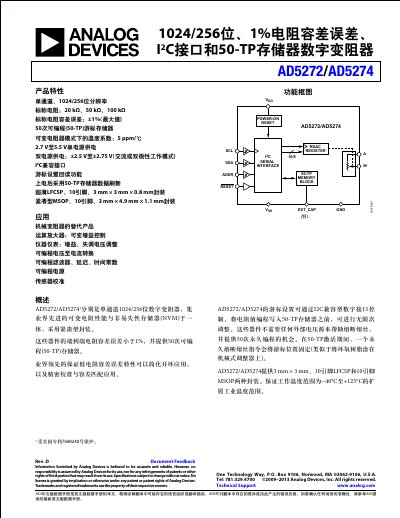

Analog Devices AD5272/AD5274 Digital Potentiometer Datasheet
The AD5272/AD5274 are single-channel digital potentiometers that combine advanced variable resistor performance with nonvolatile memory (NVM) in a compact package. These devices offer an end-to-end resistance tolerance error of less than 1% and provide 50 times programmable (50-TP) memory. The industry-leading guaranteed low resistance tolerance error simplifies open-loop applications, as well as precision calibration and tolerance-matching applications. This manual is written in Chinese.
Read onlineAnalog Devices AD5272/AD5274 specifications
| Resistance Tolerance Error | ±1% (maximum) |
|---|---|
| Memory | 50 times programmable (50-TP) |
| Temperature Coefficient | 5 ppm/°C |
| Supply Voltage (Single) | 2.7 V to 5.5 V |
| Supply Voltage (Dual) | ±2.5 V to ±2.75 V |
| Interface | I2C compatible |
| Operating Temperature Range | -40°C to +125°C |
| Package Options | 10-pin LFCSP, 10-pin MSOP |
Source: Analog Devices AD5272/AD5274 Digital Potentiometer Datasheet
