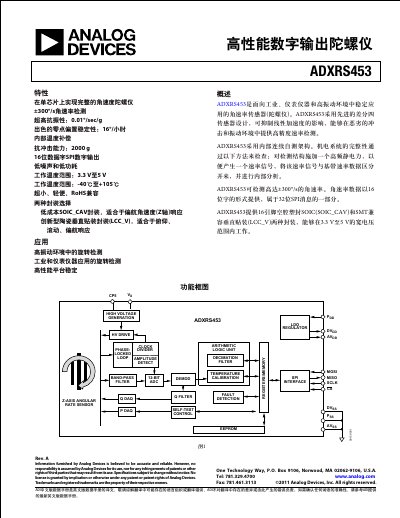

Analog Devices ADXRS453 Gyroscope Datasheet
The ADXRS453 is a high‑performance digital‑output gyroscope designed for industrial, instrumentation and high‑vibration environments. It uses a differential four‑sensor design with continuous self‑test to provide accurate angular‑rate measurements while suppressing linear acceleration effects.
The device offers two package options (16‑pin SOIC_CAV and 14‑pin LCC_V), operates from 3.3 V to 5 V, and delivers a 16‑bit SPI data word. Its specifications include ±300°/s rate range, excellent zero‑bias stability, and robust shock and vibration resistance. This manual is written in Chinese.
Analog Devices ADXRS453 specifications
| Angular rate range | ±300°/s |
|---|---|
| Digital output resolution | 16‑bit SPI |
| Supply voltage | 3.3 V to 5 V |
| Operating temperature range | -40 °C to +105 °C |
| Zero‑bias stability | 16°/hour |
| Shock resistance | 2000 g |
All Analog Devices ADXRS453 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the angular rate range of the ADXRS453?
The ADXRS453 can measure angular rates up to ±300°/s.
What supply voltage does the ADXRS453 require?
It operates from a supply voltage of 3.3 V to 5 V.
