Analog Devices AD2S90 Resolver-to-Digital Converter Datasheet

Analog Devices AD2S90 Resolver-to-Digital Converter Datasheet

Datasheet 12 pages · 168 KB · EN

The AD2S90 is a complete 12-bit resolution tracking resolver-to-digital converter that requires no external components to operate. It accepts 2 V rms input signals in the range of 3 kHz to 20 kHz on the SIN, COS, and REF inputs. The device features a Type II servo loop to track inputs and convert them into a digital representation of the input angle, with a guaranteed maximum tracking rate of 500 rps.

Read online

Analog Devices AD2S90 specifications

Resolution12-bit
Angular Accuracy-10.6 arc minutes
Power Supply Voltage-5 V dc to +5 V dc
Maximum Tracking Rate500 rps
Operating Temperature Range-40 °C to +85 °C
Package Type20-Lead PLCC

Source: Analog Devices AD2S90 Resolver-to-Digital Converter Datasheet

All Analog Devices AD2S90 documents by type

Datasheet 2

Ratings, dimensions and ordering codes, for selection and design work.

Questions answered in these manuals

Does the AD2S90 require external components to operate?

No, no external components are required to operate the device.

From: Analog Devices AD2S90 Resolver-to-Digital Converter Datasheet

What is the maximum tracking rate of the AD2S90?

The guaranteed maximum tracking rate is 500 rps.

From: Analog Devices AD2S90 Resolver-to-Digital Converter Datasheet

What is the maximum serial clock rate for the AD2S90?

The maximum serial clock rate could be as high as 2 MHz with a 50% duty cycle.

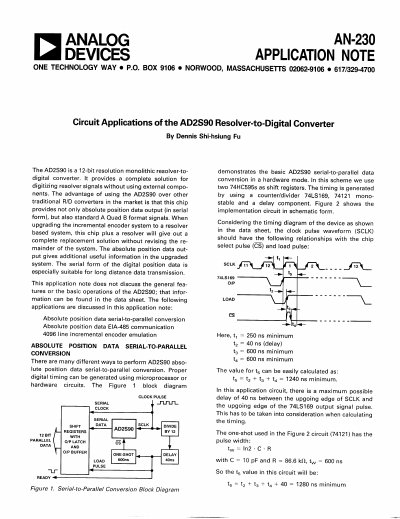

From: Analog Devices AD2S90 Resolver-to-Digital Converter Application Note AN-230

What is the resolution of the AD2S90?

The device provides a 12-bit resolution.

From: Analog Devices AD2S90 Resolver-to-Digital Converter Application Note AN-230

What components are used in the digital resolver design?

The design uses a Size 11 Brushless Resolver, an AD2S90 Resolver-to-Digital Converter, and various resistors and capacitors.

From: Analog Devices AN-234 Digital Resolver Integration Application Note

Can the digital resolver replace an incremental encoder?

Yes, it can be used as a direct replacement for an encoder without needing to change or upgrade the interface.
