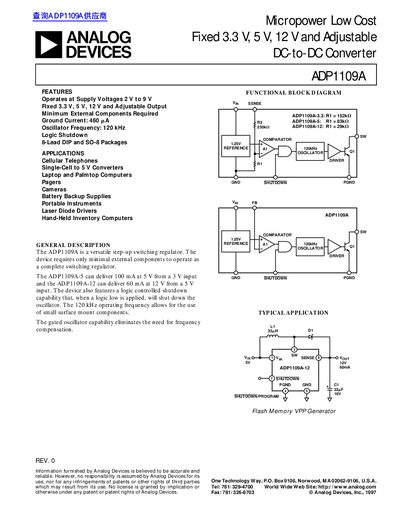

ANALOG DEVICES ADP1109A handbook
The ADP1109A is a versatile step-up switching regulator. The device requires only minimal external components to operate as a complete sw
Read onlineAnalog Devices ADP1109 specifications
| Supply Voltage Range | 2 V to 12 V |
|---|---|
| Output Voltage Options | 3.3 V, 5 V, 12 V or Adjustable |
| Quiescent Current (Switch Off) | 450 pA typical |
| Oscillator Frequency | 120 kHz typical |
| Operating Temperature Range | 0°C to +70°C |
All Analog Devices ADP1109 documents by type
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
Other documents 1
Questions answered in these manuals
What is the quiescent current of the ADP1109 when switched off?
The quiescent current is typically 450 pA.
What are the available fixed output voltages?
The device offers fixed versions for 3.3 V, 5 V, and 12 V.
