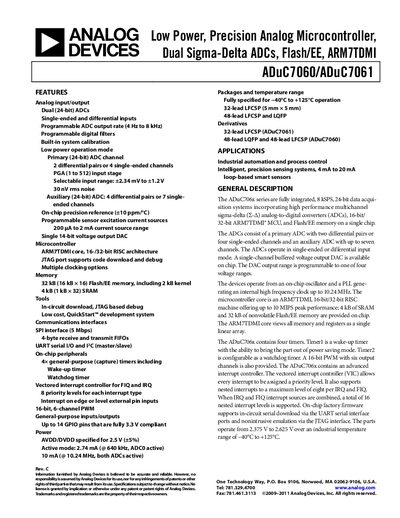

Analog Devices ADuC7060/ADuC7061 Analog Microcontroller Manual
The ADuC7060/ADuC7061 series are low‑power, precision analog microcontrollers featuring dual 24‑bit sigma‑delta ADCs, a 14‑bit DAC, and an ARM7TDMI core with up to 10 MIPS performance. The devices include on‑chip flash/EE memory, SRAM, multiple timers, GPIO, UART, SPI, and a programmable gain amplifier with a gain range of 1 to 512.
The manual covers electrical specifications, timing characteristics, pin configurations, and functional block diagrams, as well as application notes for industrial automation, process control, and smart sensor designs. It also details power‑up sequences, watchdog timer operation, and programming interfaces such as JTAG and in‑circuit serial download.
Analog Devices ADuC7060/ADuC7061 specifications
| Conversion Rate (Chop Off, Normal Mode) | 8000 Hz |
|---|---|
| Conversion Rate (Chop On, Normal Mode) | 2600 Hz |
| Operating Temperature Range | -40°C to +125°C |
| Supply Voltage | 2.375 V to 2.625 V |
| Flash/EE Memory Size | 32 kB |
| SRAM Size | 4 kB |
All Analog Devices ADuC7060/ADuC7061 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum conversion rate of the ADuC7060/ADuC7061?
The maximum conversion rate is 8000 Hz when the chop function is off and the ADC is in normal mode.
Does the ADuC7060/ADuC7061 include an ARM microcontroller?
Yes, it integrates a 16/32-bit RISC architecture ARM7TDMI core.
What is the operating temperature range of the ADuC7060/ADuC7061?
The device operates from –40 °C to +125 °C.
From: Analog Devices ADuC7060/ADuC7061 Analog Microcontroller Manual
How much Flash memory does the ADuC7060/ADuC7061 contain?
It includes 32 kB of Flash/EE memory.
From: Analog Devices ADuC7060/ADuC7061 Analog Microcontroller Manual
