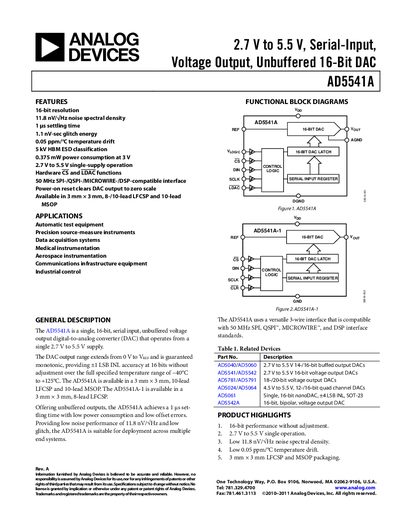

Analog Devices AD5541A Datasheet Rev A
The AD5541A is a single‑supply, 16‑bit, serial‑input, unbuffered voltage‑output DAC from Analog Devices. It operates from 2.7 V to 5.5 V and provides a monotonic output with ±1 LSB INL across –40 °C to +125 °C. The device offers low noise (11.8 nV/√Hz), low temperature drift (0.05 ppm/°C) and a fast 1 µs settling time.
Available in 3 mm × 3 mm 8‑lead LFCSP, 10‑lead LFCSP and 10‑lead MSOP packages, the AD5541A supports 50 MHz SPI/QSPI/MICROWIRE/DSP‑compatible interfaces and includes hardware CS, LDAC and power‑on reset functions.
Analog Devices AD5541A specifications
| Resolution | 16 Bits |
|---|---|
| Supply Voltage (Vop) | 2.7 V to 5.5 V |
| Power Consumption | 0.375 mW at 3 V |
| Noise Spectral Density | 11.8 nV/√Hz |
| Temperature Drift | 0.05 ppm/°C |
| Settling Time | 1 µs (to 0.5 % LSB) |
| Output Impedance | 6.25 kΩ (typ.) |
| Input Current | +1 pA |
| ESD Rating | 5 kV HBM |
| Gain Error Temp. Coefficient | +0.1 ppm/°C |
All Analog Devices AD5541A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range does the AD5541A support?
The AD5541A operates from a single supply of 2.7 V to 5.5 V.
How fast does the DAC settle to its final value?
The device settles within 1 µs to within 0.5 % of full‑scale output.
What supply voltage range does the AD5541 operate from?
The AD5541 operates from a single supply voltage of 2.7 V to 5.5 V.
How much power does the AD5541 consume?
Typical power dissipation is about 0.6 mW when powered from 5 V.
