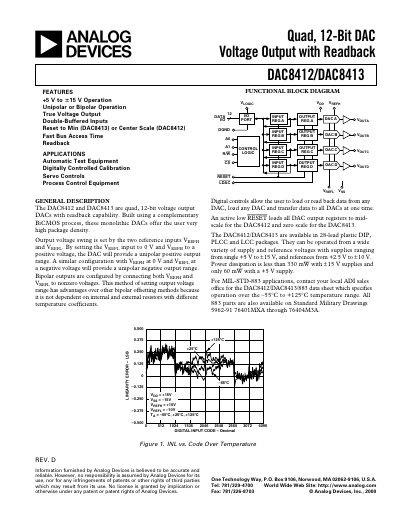

Analog Devices DAC8412/DAC8413 Quad 12‑Bit DAC Voltage Output with Readback Datasheet
The DAC8412 and DAC8413 are quad, 12‑bit voltage‑output digital‑to‑analog converters featuring readback capability. They operate from a single +5 V supply up to ±15 V and support both unipolar and bipolar output ranges via configurable reference inputs.
The devices are offered in 28‑lead plastic DIP, PLCC and LCC packages. Key performance figures include less than 330 mW power dissipation at ±15 V, output currents of ±5 mA, and fast bus access with 10 µs settling time. Detailed electrical, timing, and absolute‑maximum ratings are provided for design reference.
Analog Devices DAC8412/DAC8413 specifications
| Supply Voltage Range | +5 V to +15 V |
|---|---|
| Power Dissipation (15 V supply) | 330 mW |
| Power Dissipation (5 V supply) | 60 mW |
| Integral Nonlinearity (INL) – E grade | +0.25 LSB |
| Differential Nonlinearity (DNL) | -1 LSB (monotonic over temperature) |
| Slew Rate | 2.2 V/µs |
All Analog Devices DAC8412/DAC8413 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What does the reset pin do on the DAC8412?
An active‑low reset loads all DAC output registers to midscale for the DAC8412.
Which package options are available for the DAC8412/DAC8413?
The devices are offered in 28‑lead plastic DIP, 28‑lead ceramic DIP, 28‑lead PLCC, and 28‑lead LCC packages.
