The AD7710 is a 24-bit, no missing codes, charge balancing ADC with 2-channel programmable gain front end and low-pass filter. It can be widely used in weighing scales, thermocouples, process control, smart transmitters, and chromatography applications.

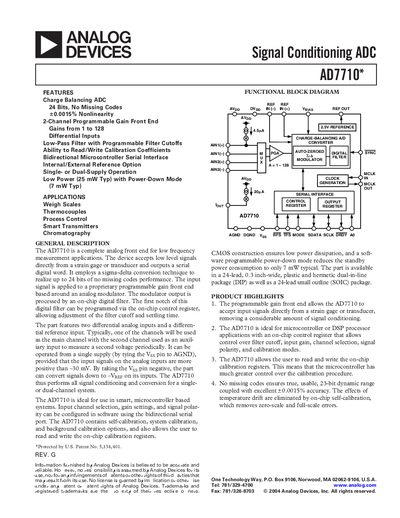

The AD7710 is a complete analog front‑end for low‑frequency measurement applications. It accepts low‑level signals directly from strain gauges or transducers and provides a 24‑bit sigma‑delta conversion with no missing codes. The device includes a programmable gain front‑end, on‑chip digital filter, and a bidirectional serial interface that can be controlled by a microcontroller.
Typical applications include weigh scales, thermocouples, process control, smart transmitters, and chromatography. The ADC offers low power consumption (25 mW typical, 7 mW in standby), selectable supply voltages (5 V to 10 V), and extensive calibration options for high accuracy.
| Resolution | 24 bits, no missing codes |
|---|---|
| Integral Nonlinearity | +0.0015 % of FSR |
| Typical Power Consumption (normal mode) | 25 mW |
| Typical Power Consumption (standby) | 7 mW |
| Supply Voltage (AVpp) | 5 V to 10 V |
| Input Common‑Mode Rejection | 100 dB min |
| Reference Output Voltage | 2.5 V nominal |
| Gain Drift | 2 ppm/°C typ |
The AD7710 provides 24‑bit resolution with no missing codes.
Typical power consumption in normal mode is 25 mW, dropping to about 7 mW in standby.
The internal reference output is 2.5 V nominal.
The device achieves at least 100 dB common‑mode rejection.
