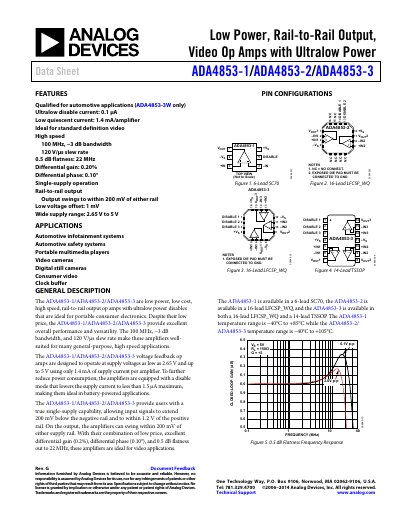

Analog Devices ADA4853-1/ADA4853-2/ADA4853-3 Op Amp Datasheet
The ADA4853‑1/2/3 family are low‑power, high‑speed video op‑amps with rail‑to‑rail output and ultralow disable current, suitable for portable and automotive video applications. They operate from a single supply of 2.65 V to 5 V and draw only 1.3‑1.8 mA per amplifier in normal mode.
Key features include a 100 MHz –3 dB bandwidth (3 V supply), 120 V/µs slew rate, 0.20 % differential gain error, and a disable pin that reduces supply current to as low as 0.1 µA. The devices are offered in 6‑lead SC70, 16‑lead LFCSP, and 14‑lead TSSOP packages with temperature ranges up to +105 °C.
Analog Devices ADA4853-1/ADA4853-2/ADA4853-3 specifications
| Supply Voltage Range | 2.65 V – 5 V |
|---|---|
| Quiescent Current (disabled) | 0.1 µA – 1.5 µA |
| Differential Gain Error | 0.20 % |
| Input Offset Voltage (typ) | 4.0 mV |
Source: Analog Devices ADA4853-1/ADA4853-2/ADA4853-3 Op Amp Datasheet
All Analog Devices ADA4853-1/ADA4853-2/ADA4853-3 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range do the ADA4853 devices support?
They operate from 2.65 V up to 5 V.
From: Analog Devices ADA4853-1/ADA4853-2/ADA4853-3 Op Amp Datasheet
How much current does the device draw when disabled?
The disabled quiescent current is as low as 0.1 µA (typical).
From: Analog Devices ADA4853-1/ADA4853-2/ADA4853-3 Op Amp Datasheet
What is the operating supply voltage range for the ADA4853 devices?
The devices operate from 2.65 V up to 5 V.
From: Analog Devices ADA4853-1/ADA4853-2/ADA4853-3 Low Power Rail-to-Rail Video Op Amps Datasheet
Which package options are available for the ADA4853‑3?
ADA4853‑3 is offered in a 16‑lead LFCSP_VQ and a 14‑lead TSSOP package.
From: Analog Devices ADA4853-1/ADA4853-2/ADA4853-3 Low Power Rail-to-Rail Video Op Amps Datasheet
What supply voltage range does the ADA4853 series support?
The devices operate from 2.65 V up to 5 V.
From: Analog Devices ADA4853-1/ADA4853-2/ADA4853-3 Datasheet
How low can the power‑down current be?
In power‑down mode the bias current can be as low as 0.01 pA.
From: Analog Devices ADA4853-1/ADA4853-2/ADA4853-3 Datasheet
