Start here

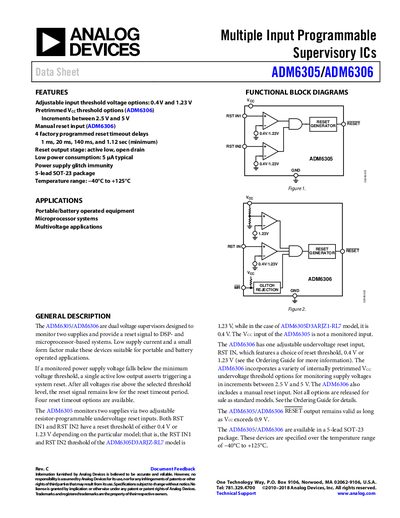

Analog Devices ADM6305/ADM6306 Dual Voltage Supervisors Data Sheet
The Analog Devices ADM6305/ADM6306 are dual voltage supervisory integrated circuits designed to monitor two power supplies and provide a system reset signal for DSP- and microprocessor-based systems. These devices feature low supply current and a small form factor, making them suitable for portable and battery-operated applications.
Read onlineAnalog Devices ADM6305/ADM6306 specifications
| Operating Voltage Range (ADM6305) | 0.9 V to 5.5 V |
|---|---|
| Supply Current (Typical) | 5 µA |
| Reset Threshold Temperature Coefficient | 25 ppm/°C |
| Package Type | 5-Lead SOT-23 |
| Operating Temperature Range | -40°C to +125°C |
Source: Analog Devices ADM6305/ADM6306 Dual Voltage Supervisors Data Sheet
All Analog Devices ADM6305/ADM6306 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical supply current of the ADM6305/ADM6306?
The typical input current (supply current) is 5 µA when VCC = 5.5 V.
From: Analog Devices ADM6305/ADM6306 Dual Voltage Supervisors Data Sheet
What are the available reset timeout periods?
Four factory programmed reset time out delays are available: 1 ms, 20 ms, 140 ms, and 1.12 sec.
From: Analog Devices ADM6305/ADM6306 Dual Voltage Supervisors Data Sheet
What is the behavior of the reset output on the ADM6305/ADM6306?
The reset output is an active‑low, open‑drain signal that remains valid as long as VCC exceeds 0.9 V.
How many reset timeout options are available and what are they?
Four factory‑programmed reset timeout delays are provided: 1 ms, 20 ms, 140 ms, and 1.12 s.
Does the ADM6306 have a manual reset input?
Yes, the ADM6306 includes a manual reset (MR) input that can be driven low to assert reset.
What package are the devices supplied in?
Both devices are supplied in a 5‑lead SOT‑23 (RJ‑5) package.
